5 × 40 FT Container Home (Single-Level Luxury Villa) — Full Description

Project Overview

This luxury container home is developed using five 40-foot shipping containers placed on the same level, creating a wide, spacious single-storey residence. The layout is thoughtfully planned to offer expansive open living areas, multiple bedrooms, and well-defined private zones, making it ideal for large families or premium villa-style living.

• Number of containers: 5
• Container size: 40 FT each
• Total built-up area: ≈ 150 m² (≈ 1,615 sq.ft.)
• Configuration: Side-by-side (single level)
• Use: Ideal for large families, luxury villas, or resort-style homes

The design focuses on openness, seamless circulation, strong indoor–outdoor connection, and clear zoning between common living spaces and private bedrooms.

Overall Dimensions (Combined Structure)

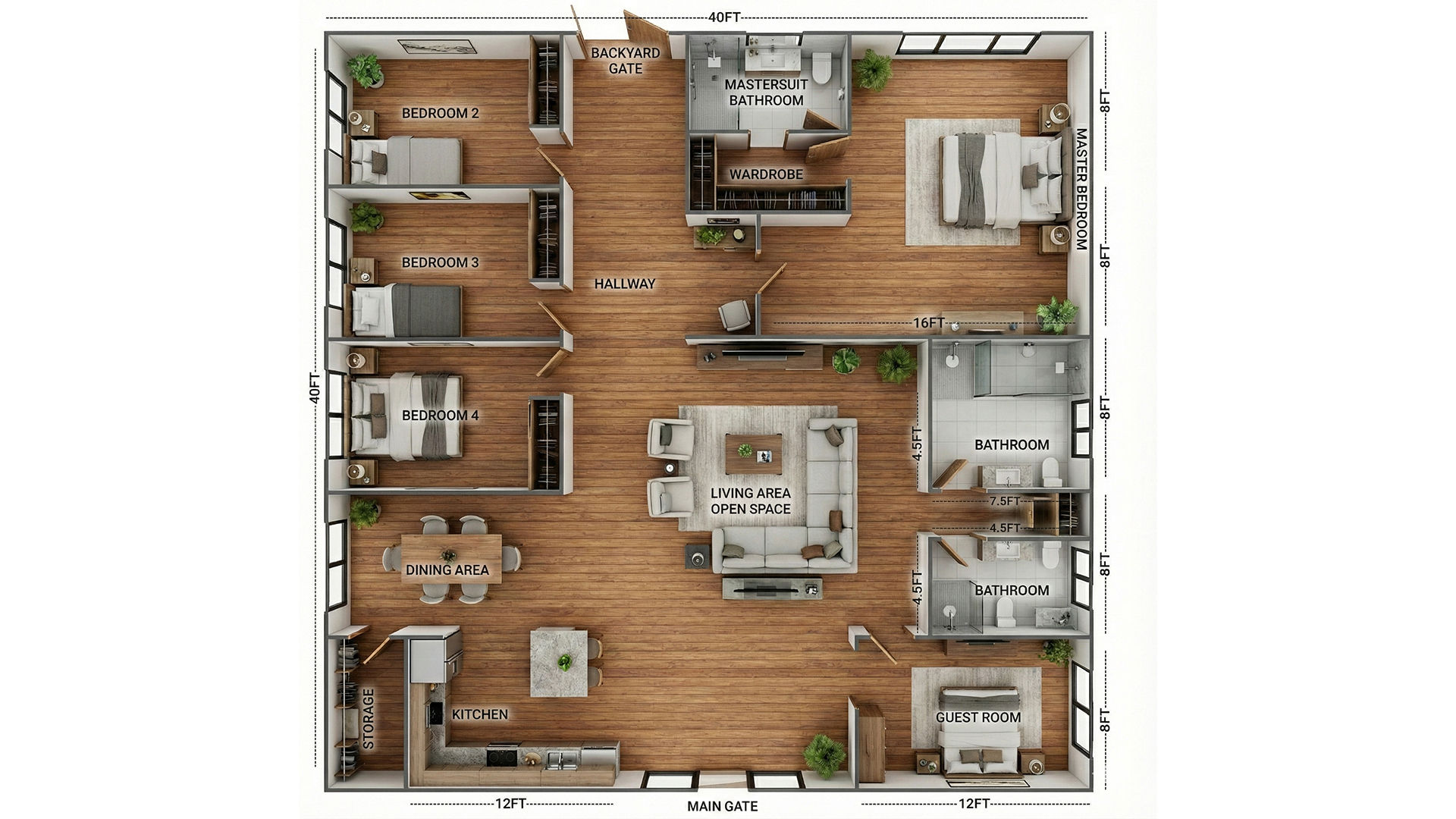

Internal Space Planning (As per Layout)

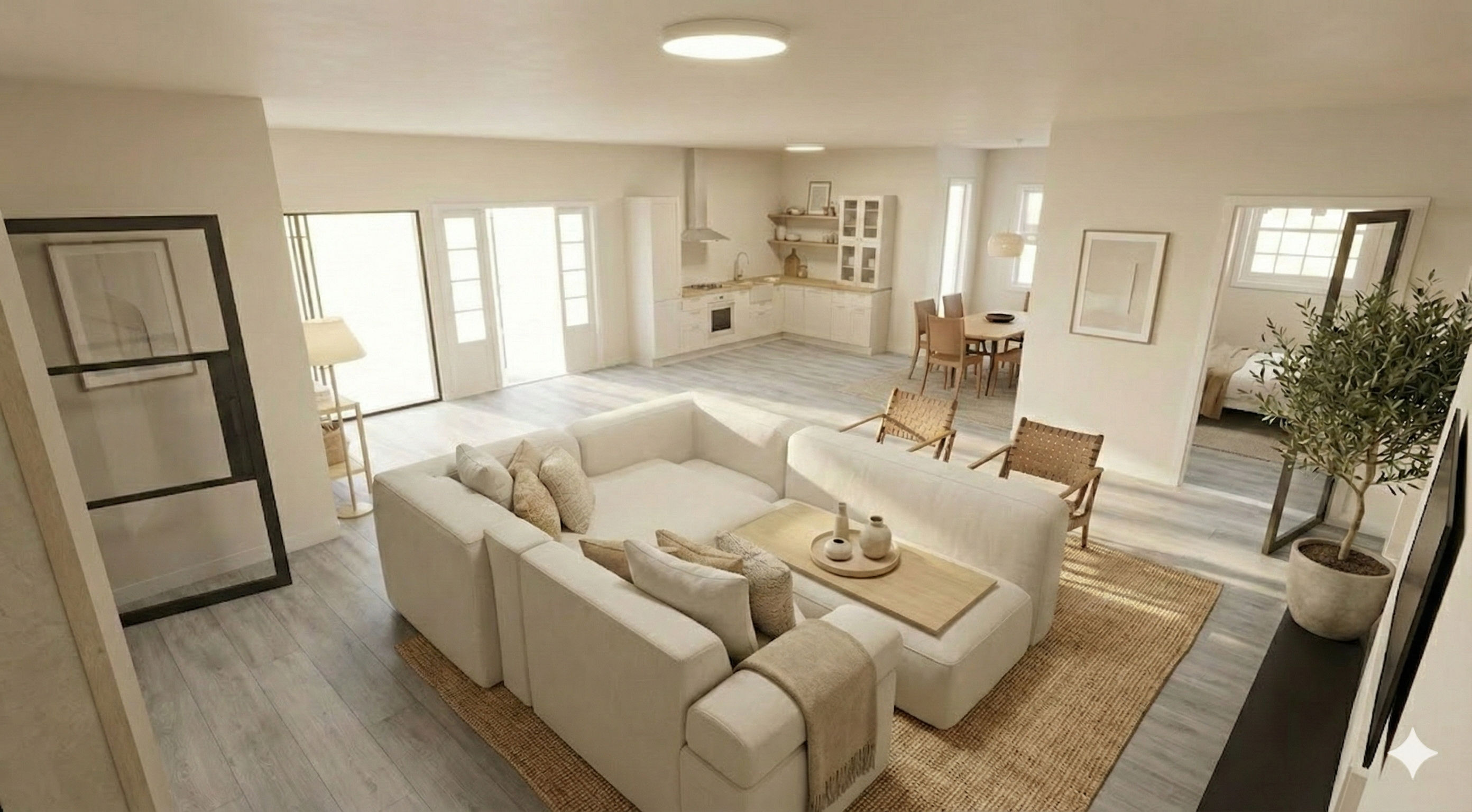

1) Open Living Area

Approx. Area: ≈ 32–34 m²

The centrally located open living area serves as the heart of the home, offering a comfortable and spacious environment for family gatherings and relaxation.

• Large sofa seating arrangement
• TV and entertainment unit
• Excellent daylight and ventilation
• Direct connection to dining and circulation spaces

2) Dining Area

Approx. Area: ≈ 14–15 m²

• 8-seater dining table
• Located adjacent to the kitchen
• Ideal for family meals and gatherings

3) Kitchen

Approx. Area: ≈ 14–15 m²

A spacious modular kitchen supported by a dedicated storage area for maximum functionality.

• U-shaped modular layout with island counter
• Granite / quartz countertop
• Hob, chimney, and sink provision
• Dedicated pantry / storage area

4) Master Bedroom

Approx. Area: ≈ 17–18 m²

• King-size bed layout
• Walk-in wardrobe
• Attached master suite bathroom

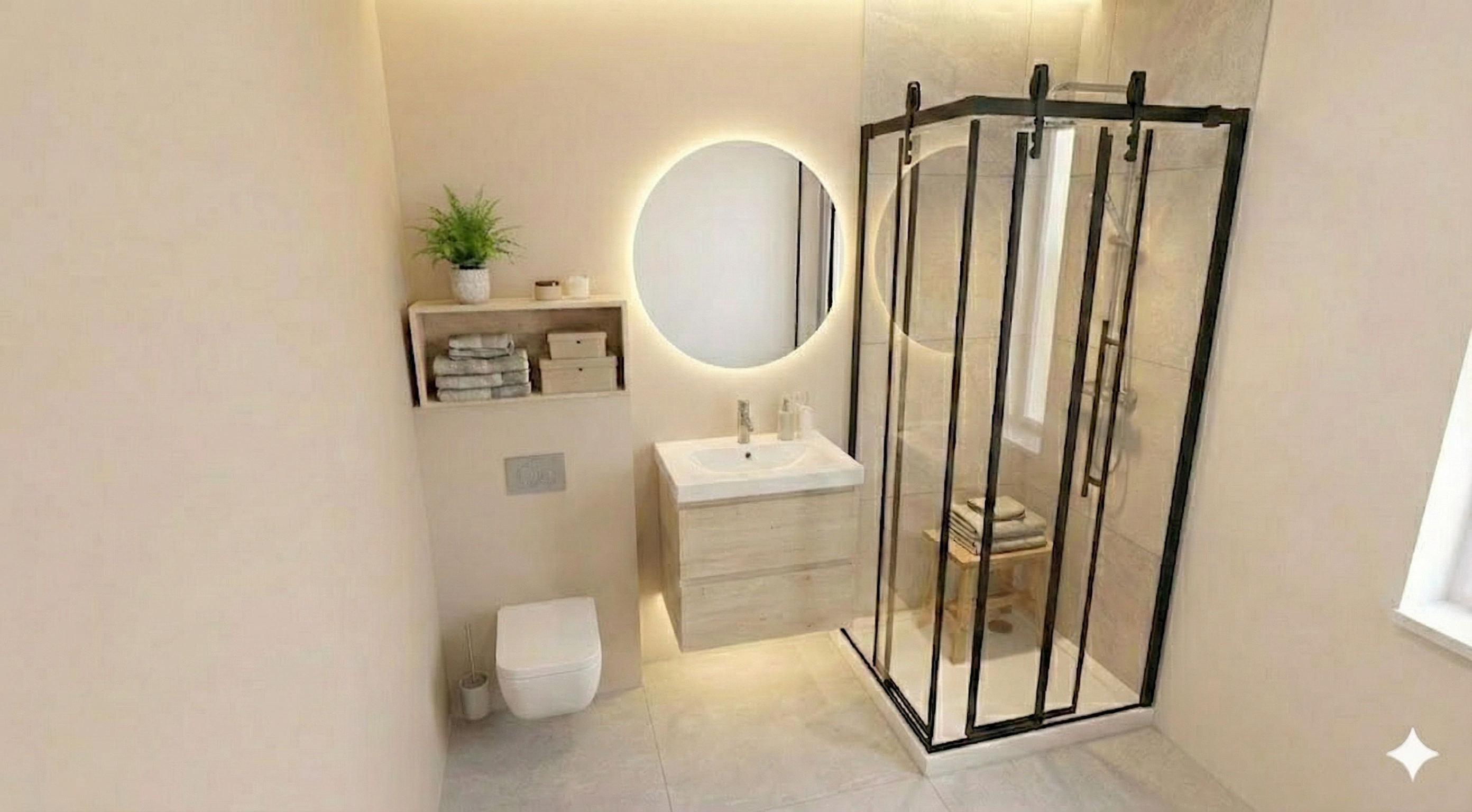

5) Master Suite Bathroom (Attached)

Approx. Area: ≈ 5–6 m²

• WC and wash basin
• Shower cubicle
• Premium fittings
• Ventilation window

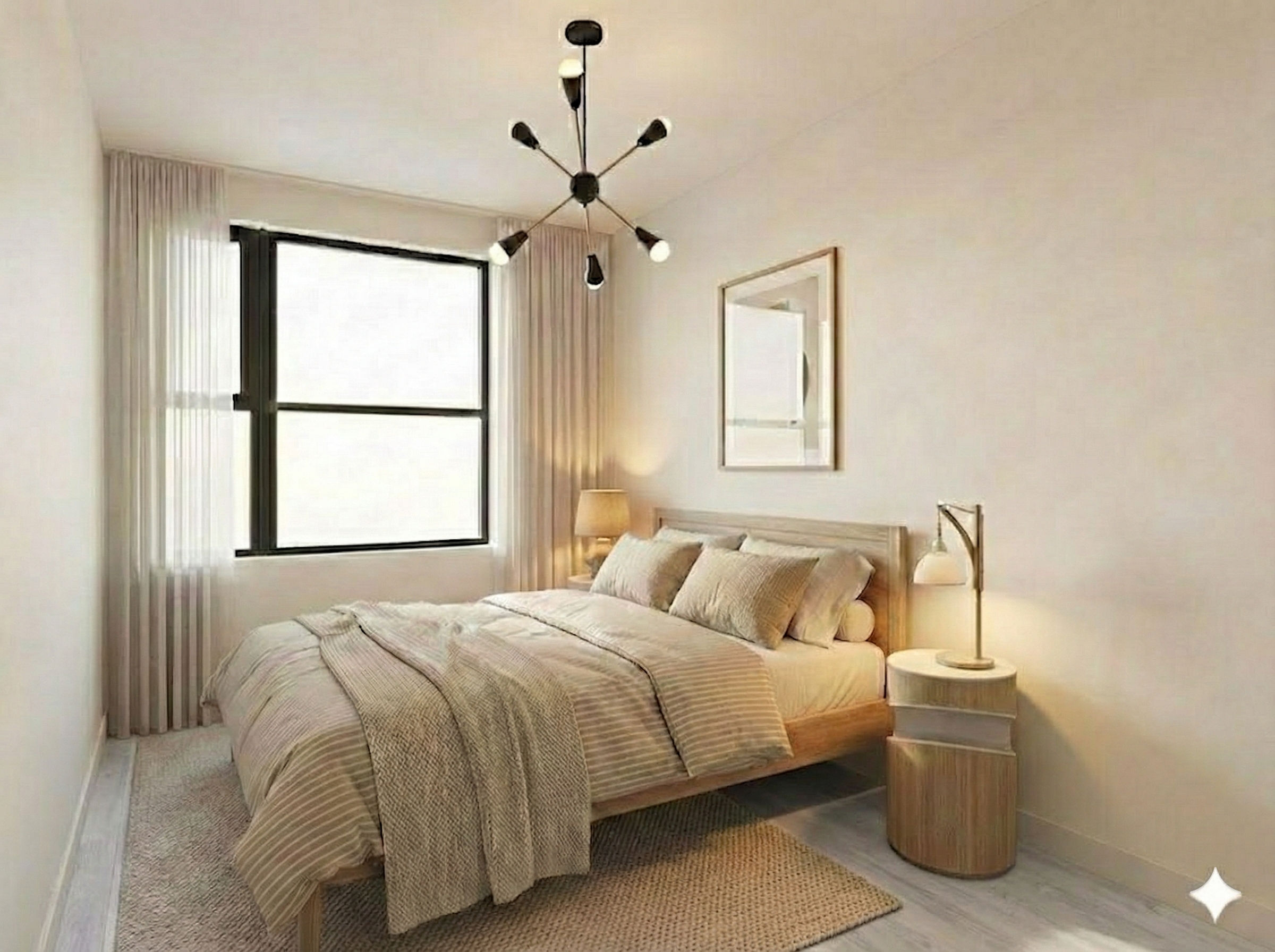

6) Bedroom 2

Approx. Area: ≈ 12–13 m²

• Double bed layout
• Wardrobe provision
• Natural daylight

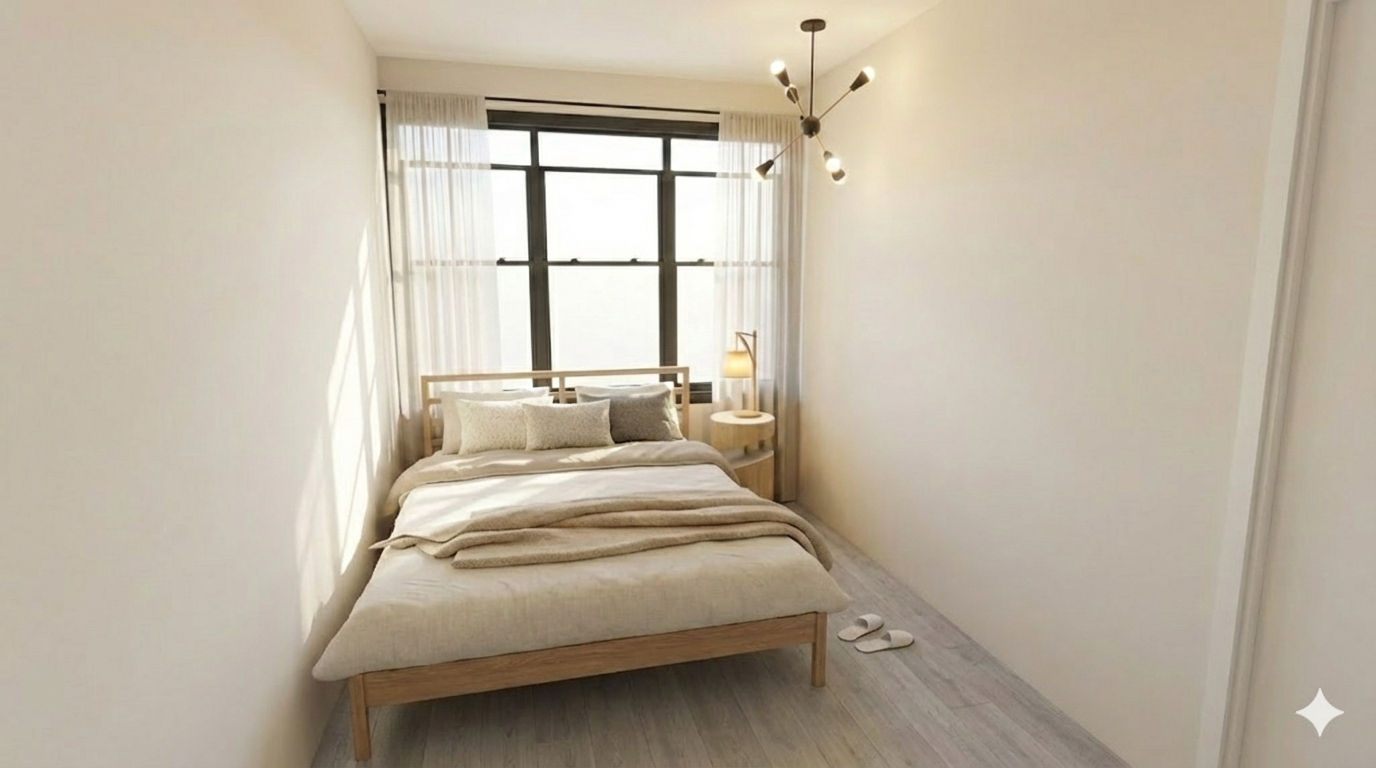

7) Bedroom 3

Approx. Area: ≈ 12–13 m²

• Comfortable family bedroom
• Suitable for children or guests

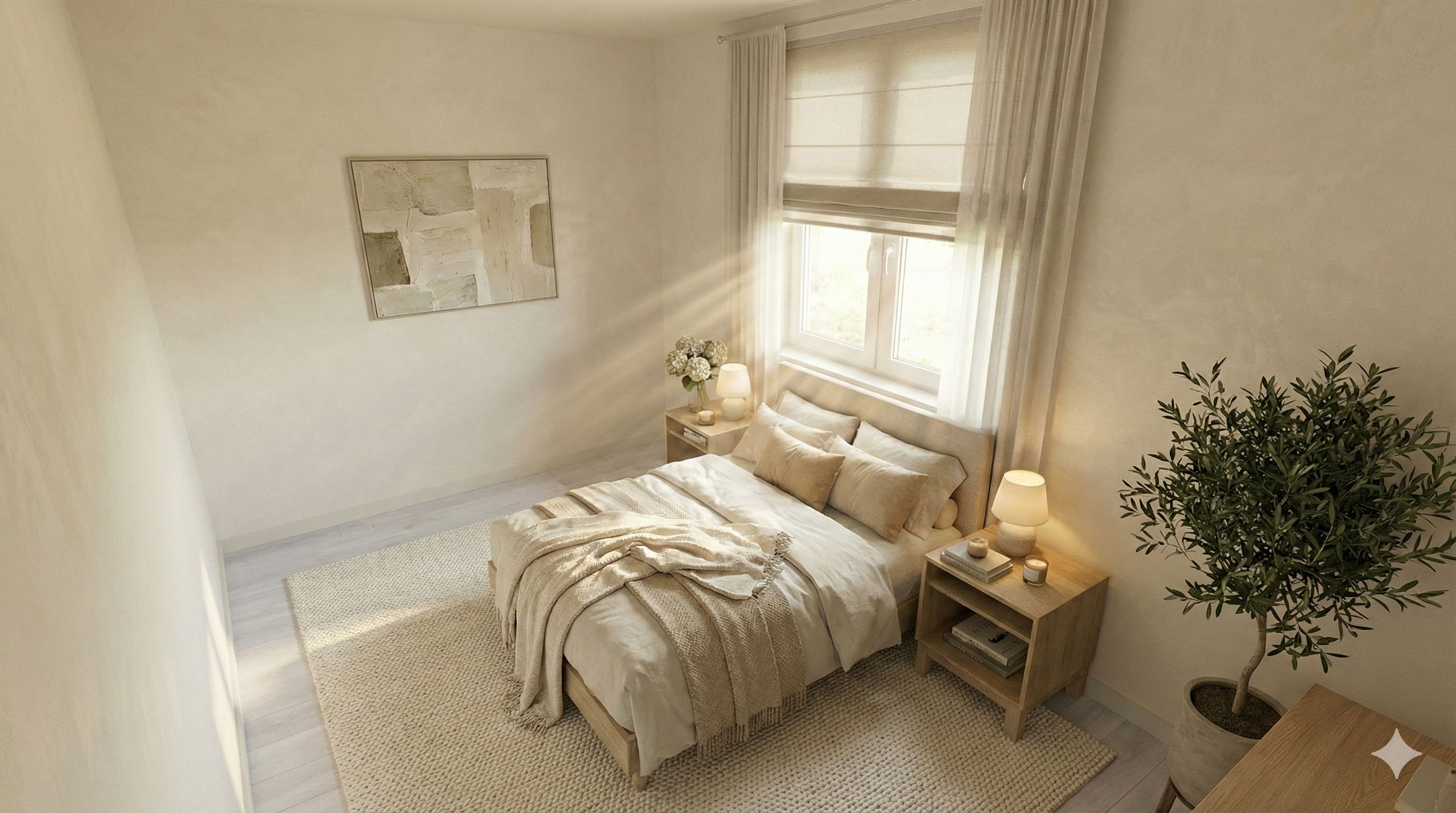

8) Bedroom 4

Approx. Area: ≈ 12–13 m²

• Flexible use as bedroom or study
• Good privacy

9) Guest Room

Approx. Area: ≈ 11–12 m²

• Ideal for guests or elderly family members
• Easy access to common bathrooms

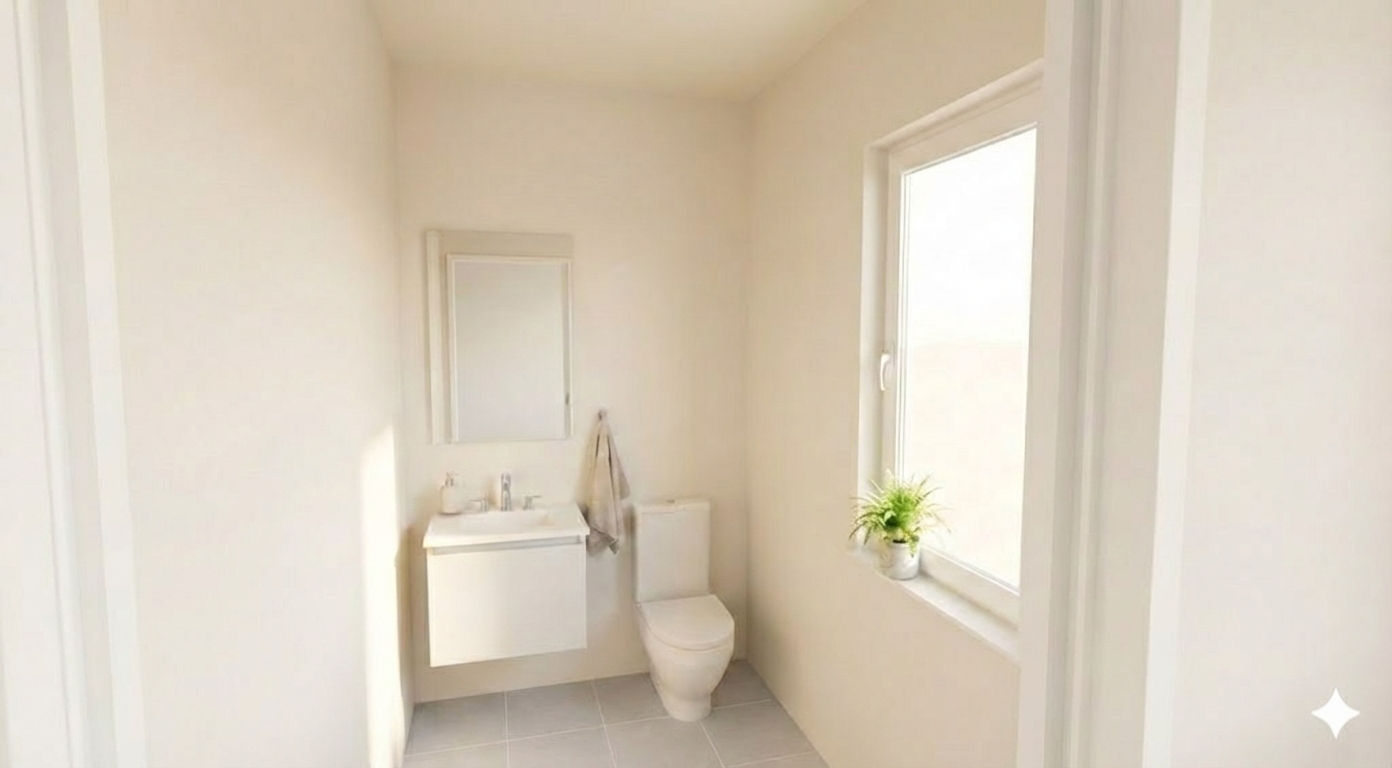

10) Common Bathrooms

Number: 2

• Western WC and wash basin
• Shower area
• Anti-skid flooring

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Anti-rust and anti-corrosion coating
• Reinforced cut-outs for large openings

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid tiles in bathrooms

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Large family residence
• Luxury single-storey villa
• Resort cottage or hospitality unit
• Premium farmhouse home
• High-end Airbnb or rental villa
