5 × 40 FT Container Home (G+1 – Large Family Villa) — Full Description

Project Overview

This expansive container home is designed using five 40-foot shipping containers, with three containers arranged side-by-side on the ground floor and two containers stacked above to form a spacious G+1 residence. The layout offers generous open living areas on the ground floor and multiple private bedrooms on the upper level, making it ideal for large or joint families.

• Number of containers: 5
• Container size: 40 FT each
• Total built-up area: ≈ 150 m² (≈ 1,615 sq.ft.)
• Configuration: Ground + 1 (3 containers bottom + 2 containers top)
• Use: Ideal for large families, luxury villas, or premium rental properties

The design emphasizes openness, efficient vertical circulation, natural light, and clear separation between common and private zones.

Overall Dimensions

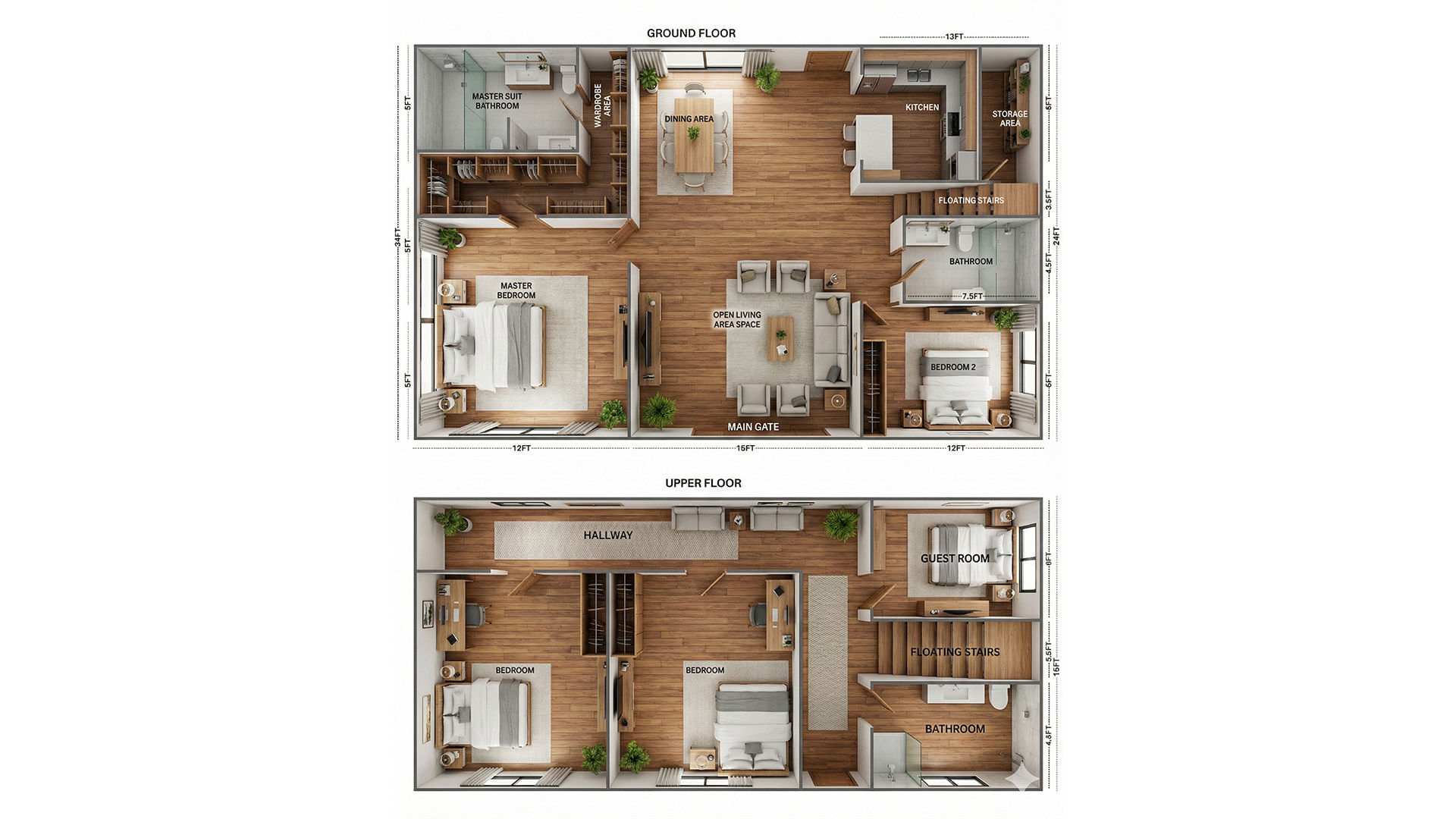

Ground Floor Layout (As per Plan)

1) Open Living Area

Approx. Area: ≈ 30–32 m²

The central open living area forms the heart of the home, designed for family interaction and relaxation.

• Large sofa seating arrangement
• Main entrance access
• Excellent natural light and ventilation
• Open-plan spatial flow

2) Dining Area

Approx. Area: ≈ 12–14 m²

• 6–8 seater dining table
• Located adjacent to kitchen
• Comfortable family dining space

3) Kitchen

Approx. Area: ≈ 12–13 m²

A spacious modular kitchen with attached storage, designed for efficiency and ample workspace.

• U-shaped modular layout
• Granite / quartz countertop
• Hob, chimney, and sink provision
• Dedicated storage area

4) Master Bedroom (Ground Floor)

Approx. Area: ≈ 15–16 m²

• Queen / king-size bed layout
• Walk-in wardrobe area
• Attached master suite bathroom

5) Master Suite Bathroom (Attached)

Approx. Area: ≈ 5 m²

• WC and wash basin
• Shower area
• Premium fittings

6) Common Bathroom

Approx. Area: ≈ 4–4.5 m²

• Western WC
• Wash basin
• Shower area

7) Floating Staircase

• Modern floating stair design
• Efficient vertical circulation
• Architectural highlight

Upper Floor Layout (As per Plan)

1) Bedroom 2

Approx. Area: ≈ 11–12 m²

• Double bed layout
• Wardrobe provision
• Natural light and ventilation

2) Bedroom 3

Approx. Area: ≈ 11–12 m²

• Comfortable family bedroom
• Ideal for children or guests

3) Bedroom 4

Approx. Area: ≈ 11–12 m²

• Additional bedroom for large families
• Flexible use as study or hobby room

4) Guest Room

Approx. Area: ≈ 10–11 m²

• Ideal for guests or elderly family members
• Easy access to common bathroom

5) Upper Floor Bathroom

Approx. Area: ≈ 4–4.5 m²

• WC and wash basin
• Shower area
• Ventilation window

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Structural reinforcement for multi-container stacking
• Anti-rust and anti-corrosion treatment

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid tiles in bathrooms

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Large joint-family residence
• Luxury container villa
• Premium duplex housing
• Resort or hospitality villa
• High-end rental or Airbnb property
