4 × 40 FT Container Home (G+1 – Double Stack) — Full Description

Project Overview

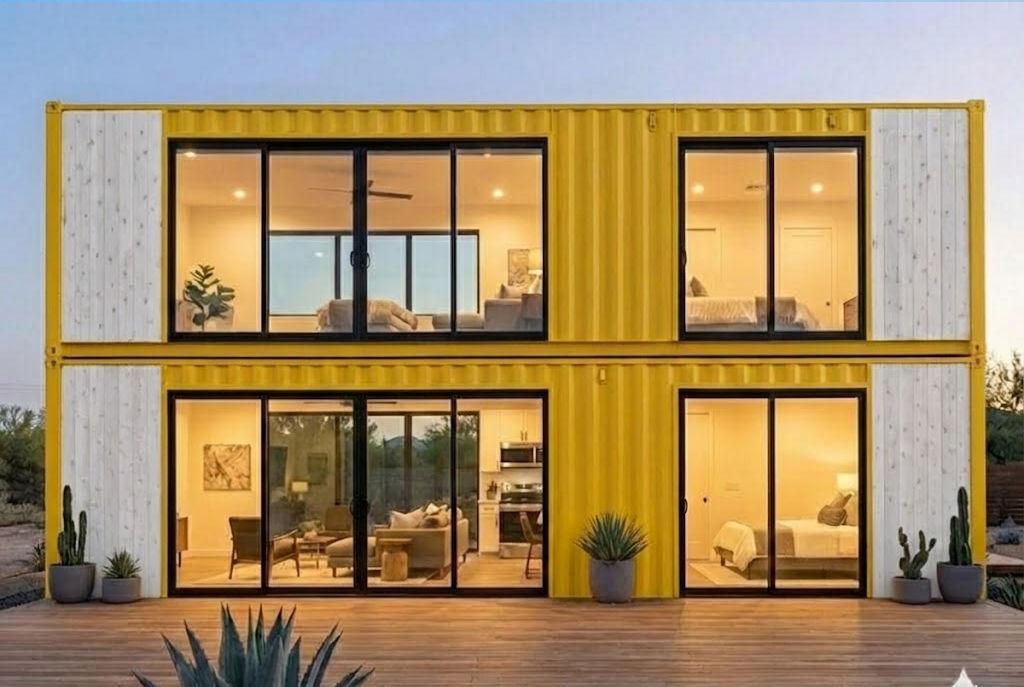

This spacious G+1 container home is developed using four 40-foot shipping containers, with two containers placed side-by-side on the ground floor and two containers stacked above to form a well-balanced double-storey residence. The layout is optimized for large families, offering expansive living areas on the ground floor and multiple private bedrooms on the upper level.

• Number of containers: 4
• Container size: 40 FT each
• Total built-up area: ≈ 120 m² (≈ 1,290 sq.ft.)
• Configuration: Ground + 1 (2 containers bottom + 2 containers top)
• Use: Ideal for large families, duplex living, or premium rental homes

The design focuses on vertical efficiency, clear zoning between social and private spaces, and comfortable circulation across both floors.

Overall Dimensions

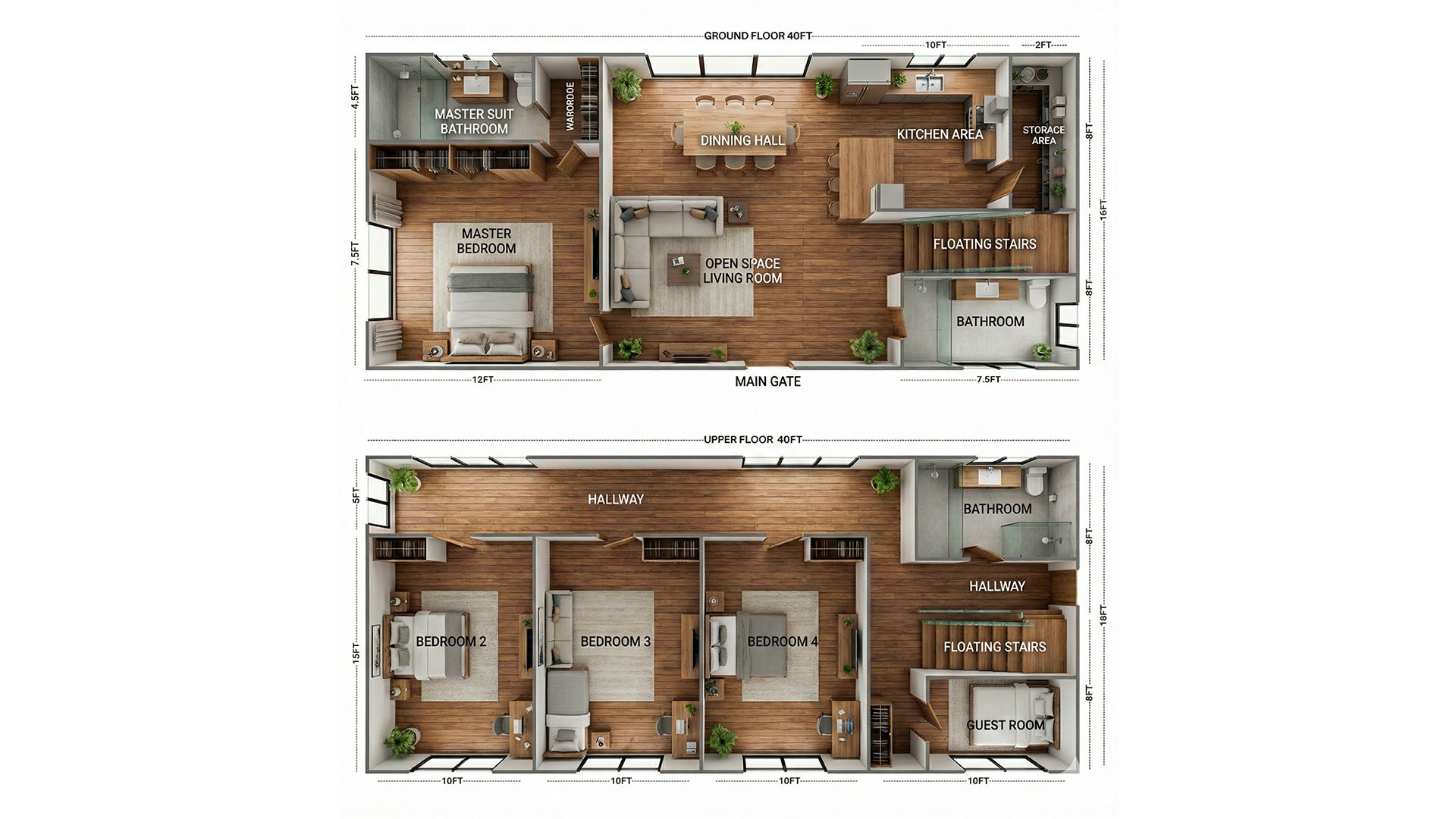

Ground Floor Layout (As per Plan)

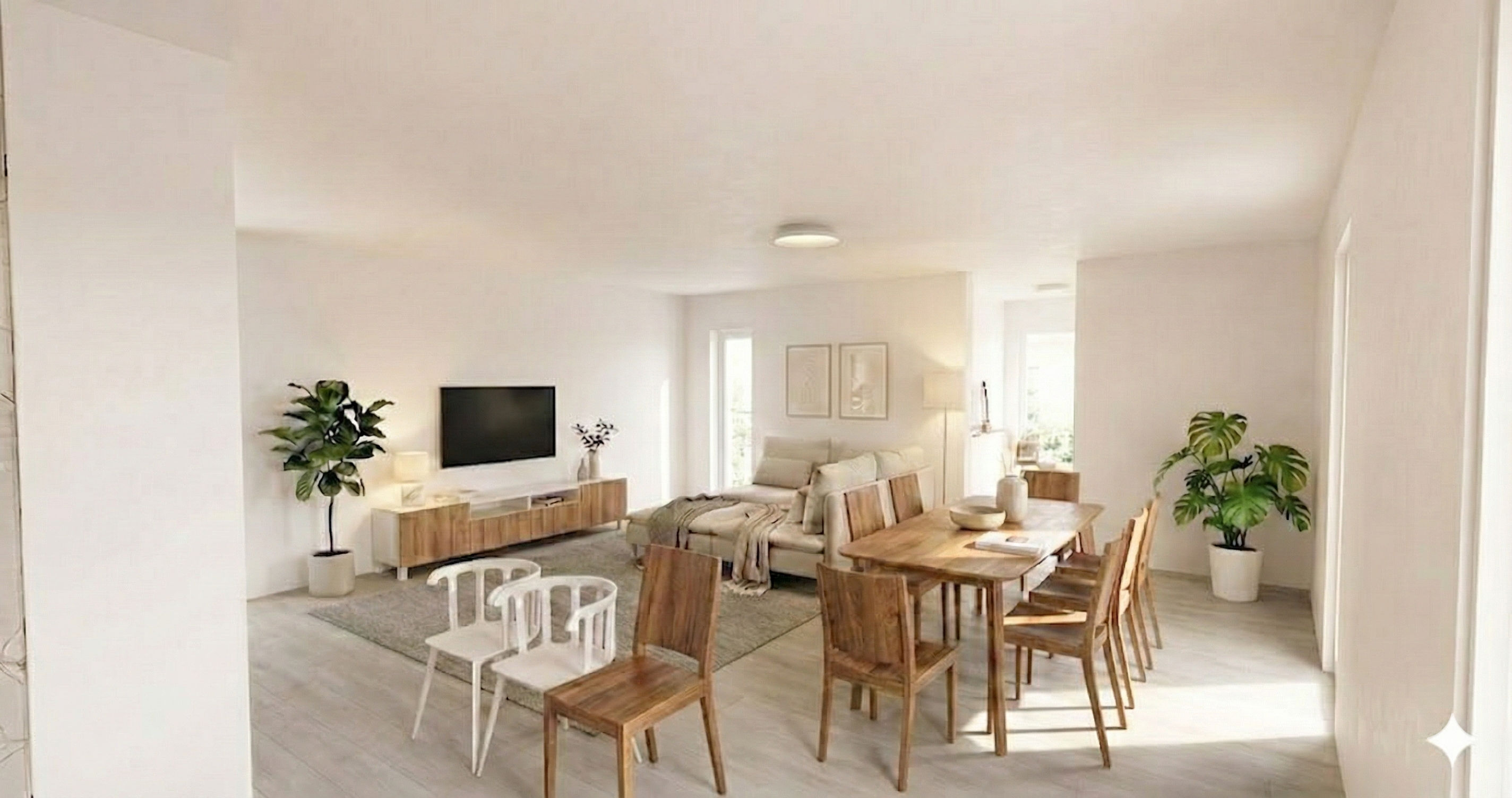

1) Open Space Living Room

Approx. Area: ≈ 26–28 m²

The ground floor living room serves as the primary family gathering space, centrally located and connected to the dining hall.

• Spacious sofa seating arrangement
• Main entrance access
• Excellent daylight through large openings
• Open-plan layout

2) Dining Hall

Approx. Area: ≈ 12–13 m²

• 6–8 seater dining table
• Central family dining zone
• Direct access to kitchen

3) Kitchen Area

Approx. Area: ≈ 11–12 m²

A modern modular kitchen supported by a dedicated storage area.

• U-shaped modular layout
• Granite / quartz countertop
• Hob, chimney, and sink provision
• Attached storage area

4) Master Bedroom (Ground Floor)

Approx. Area: ≈ 14–15 m²

• Queen-size bed layout
• Wardrobe area
• Attached master suite bathroom

5) Master Suite Bathroom (Attached)

Approx. Area: ≈ 4.5–5 m²

• WC and wash basin
• Shower area
• Premium fittings

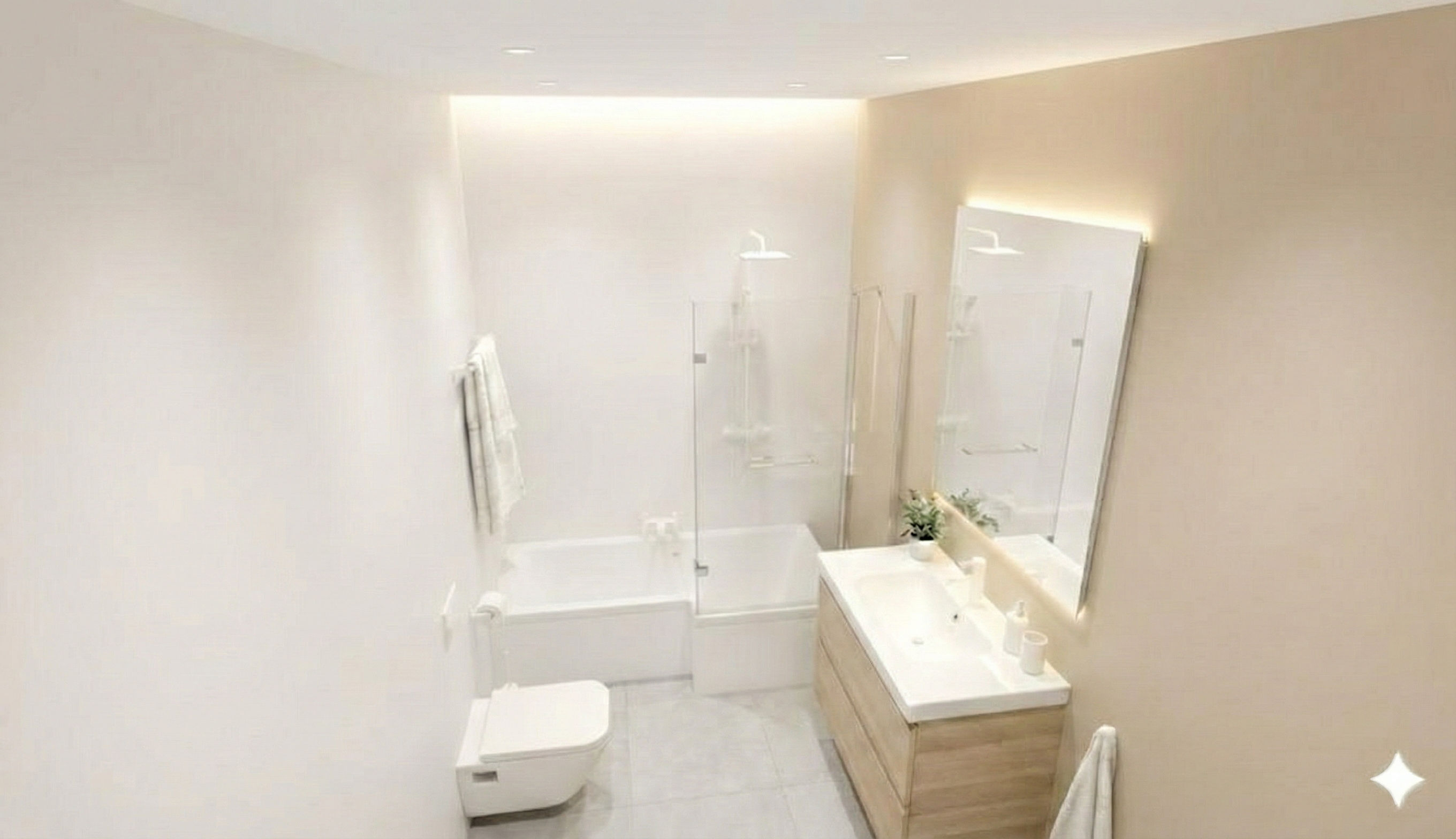

6) Common Bathroom

Approx. Area: ≈ 4 m²

• Western WC
• Wash basin
• Shower area

7) Storage & Utility Area

• Dedicated storage space
• Supports kitchen and household needs

8) Floating Staircase

• Modern floating stair design
• Efficient vertical circulation

Upper Floor Layout (As per Plan)

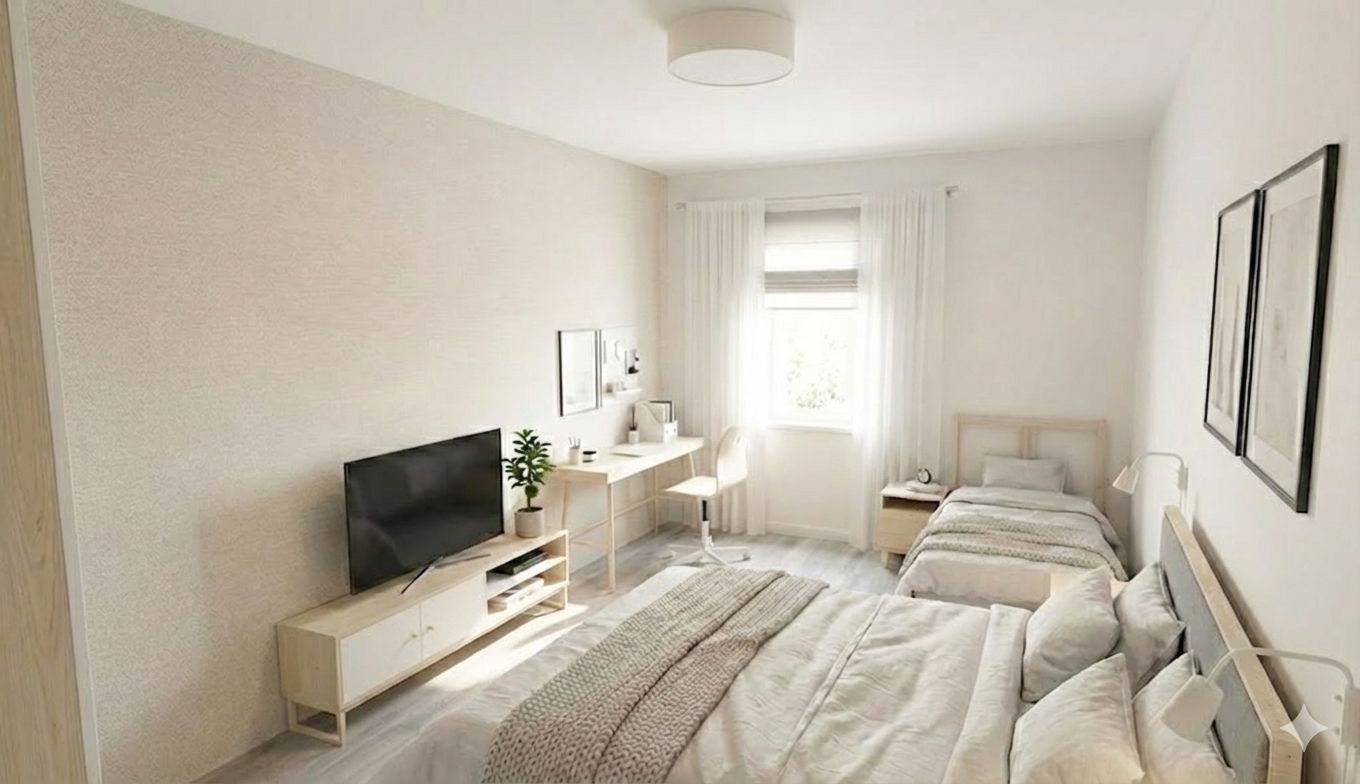

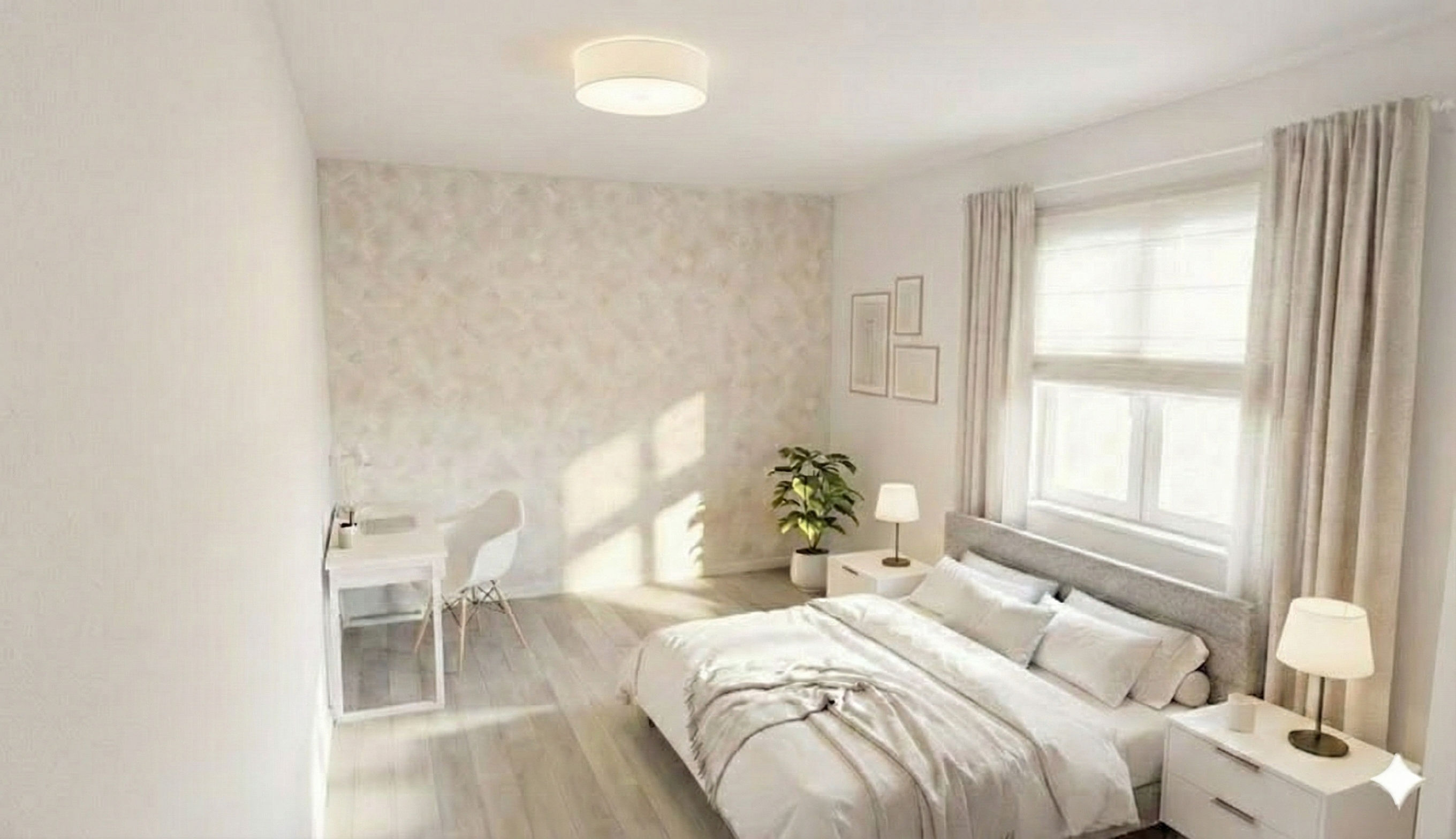

1) Bedroom 2

Approx. Area: ≈ 11–12 m²

• Double bed layout
• Wardrobe provision
• Natural light and ventilation

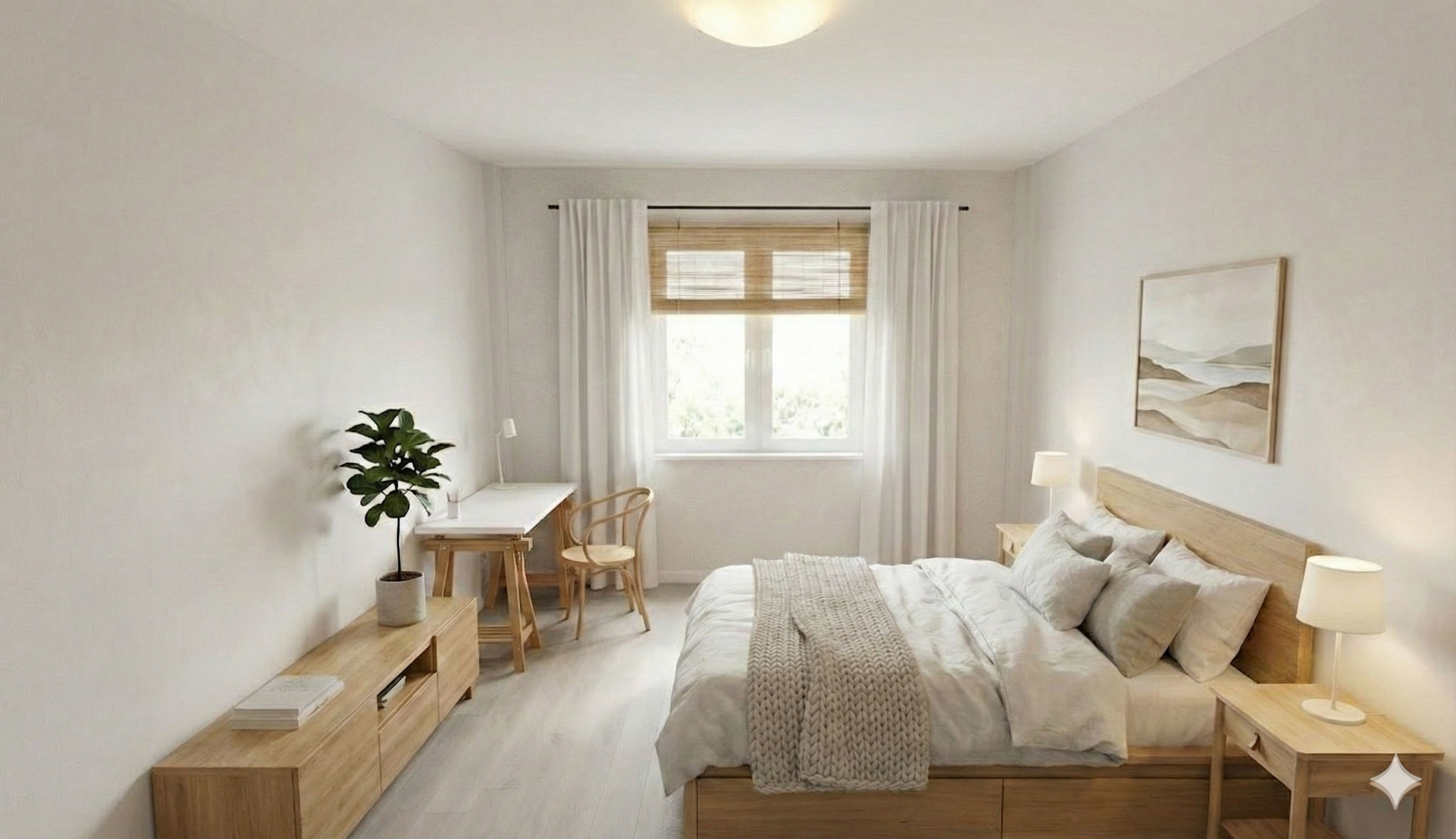

2) Bedroom 3

Approx. Area: ≈ 11–12 m²

• Comfortable family bedroom
• Suitable for children or guests

3) Bedroom 4

Approx. Area: ≈ 11–12 m²

• Additional bedroom for large families
• Flexible usage

4) Guest Room

Approx. Area: ≈ 10–11 m²

• Ideal for guests or elderly family members
• Easy access to common bathroom

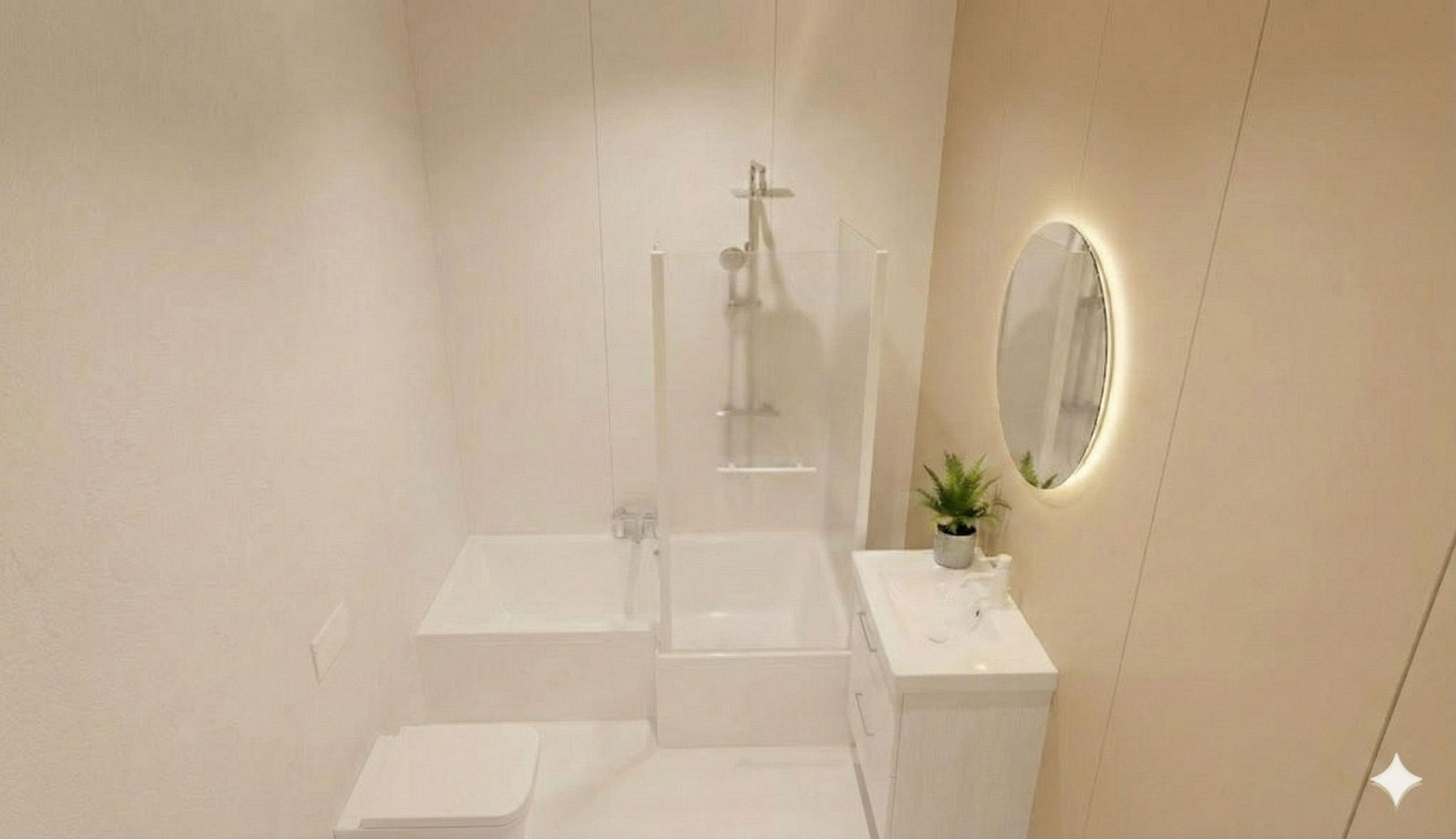

5) Upper Floor Bathroom

Approx. Area: ≈ 4–4.5 m²

• WC and wash basin
• Shower area
• Ventilation window

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Structural reinforcement for double stacking
• Anti-rust and anti-corrosion treatment

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid tiles in bathrooms

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Large joint-family residence
• Luxury G+1 container villa
• Urban duplex housing
• Premium rental or Airbnb unit
• High-end vacation home
