1 × 40 FT + 1 × 20 FT Container Home (Side-by-Side) — Full Description

Project Overview

This modern container home is designed using one 40-foot container and one 20-foot container placed side-by-side to create a compact yet highly functional single-storey residence. The layout forms an L-shaped configuration that opens up to a private backyard garden, enhancing indoor–outdoor living.

• Number of containers: 2
• Container sizes: 1 × 40 FT, 1 × 20 FT
• Total built-up area: ≈ 45 m² (≈ 485 sq.ft.)
• Configuration: Side-by-side (L-shaped layout)
• Use: Ideal for couples, small families, or premium rental units

The design focuses on openness, natural light, efficient zoning, and a seamless connection to the outdoor garden.

Overall Dimensions (Combined Structure)

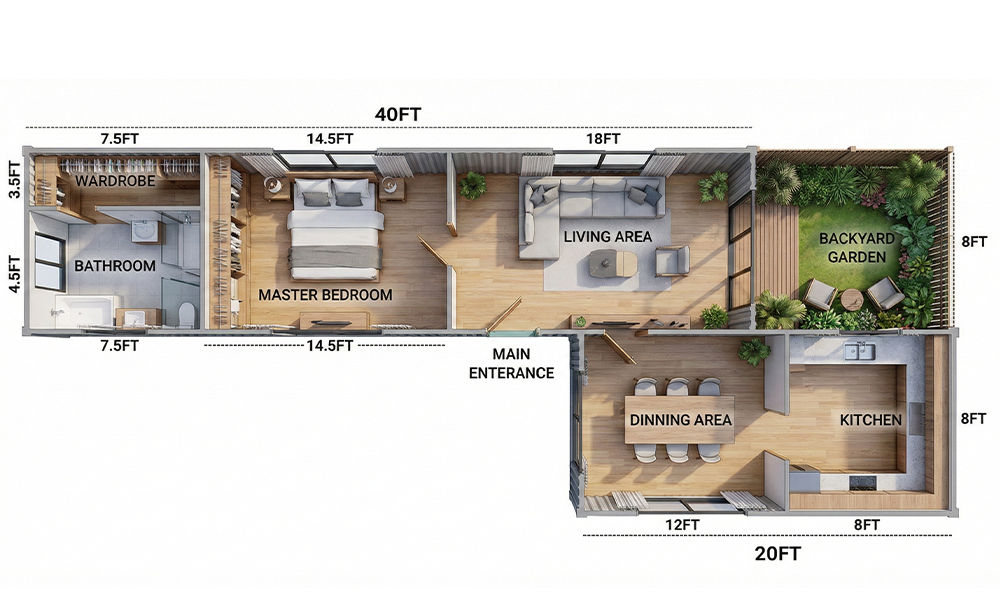

Internal Space Planning (As per Layout)

1) Living Area

Approx. Area: ≈ 9–10 m²

The living area is positioned centrally within the 40 FT container and opens directly towards the backyard garden.

• Sofa seating arrangement with coffee table
• Large sliding glass doors for natural light
• Strong indoor–outdoor visual connection
• Ideal for relaxing and entertaining

2) Dining Area

Approx. Area: ≈ 6–7 m²

Located within the 20 FT container, the dining area connects seamlessly to both the kitchen and living room.

• 4–6 seater dining table
• Comfortable circulation space
• Well-lit environment

3) Kitchen

Approx. Area: ≈ 7–8 m²

A spacious U-shaped modular kitchen designed for efficiency and ample storage.

• Granite / quartz countertop
• Hob and chimney provision
• Sink with mixer
• Overhead and base cabinets
• Ventilation window

4) Master Bedroom

Approx. Area: ≈ 10–11 m²

The master bedroom is positioned within the 40 FT container, ensuring privacy and comfort.

• Queen-size bed layout
• Side table provision
• Direct access to wardrobe area
• Good natural ventilation

5) Walk-in Wardrobe

• Dedicated wardrobe space
• Organized storage for clothing and accessories
• Enhances bedroom functionality

6) Bathroom

Approx. Area: ≈ 3.5–4 m²

• Western WC
• Wash basin
• Shower area / bathtub provision
• Anti-skid flooring
• Ventilation window

7) Backyard Garden

• Private outdoor sit-out space
• Landscaped green area
• Perfect for relaxation and gatherings
• Enhances natural ventilation and light

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Anti-corrosion and rust-proof treatment
• Reinforced openings for doors and windows

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid tiles in wet areas

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing lines
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Compact permanent residence
• Weekend or vacation home
• Airbnb or serviced rental unit
• Farmhouse or eco-home
• Resort cottage module
