3 × 40 FT Container Home (G+1 – Partial Stack) — Full Description

Project Overview

This modern container home is designed using three 40-foot shipping containers, with two containers placed side-by-side on the ground floor and one container stacked on top to form a G+1 configuration. The layout offers spacious open living areas on the ground floor and private bedrooms on the upper level, making it ideal for family living.

• Number of containers: 3
• Container size: 40 FT each
• Total built-up area: ≈ 90 m² (≈ 970 sq.ft.)
• Configuration: Ground + 1 (partial stacking)
• Use: Ideal for families, duplex-style living, or rental homes

The design emphasizes vertical efficiency, privacy between floors, and open-plan living within a compact footprint.

Overall Dimensions

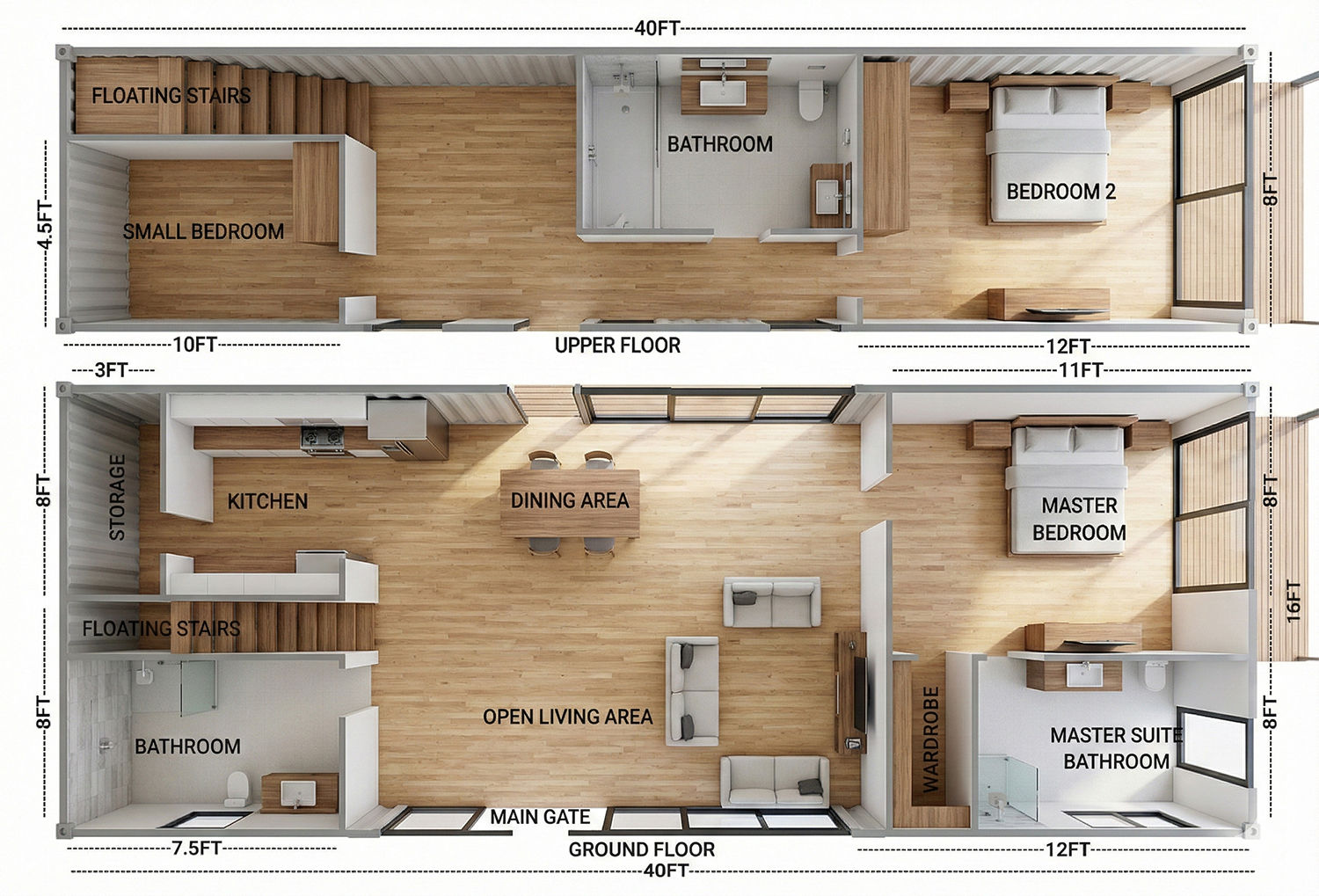

Ground Floor Layout (As per Plan)

1) Open Living Area

Approx. Area: ≈ 28–30 m²

The open living area forms the central gathering space of the home and connects directly to the dining area.

• Spacious seating arrangement
• Main entrance access
• Excellent natural light
• Open-plan layout

2) Dining Area

Approx. Area: ≈ 9–10 m²

• 4–6 seater dining table
• Central family dining space
• Adjacent to kitchen

3) Kitchen

Approx. Area: ≈ 8–9 m²

• Modular kitchen layout
• Granite / quartz countertop
• Overhead and base cabinets
• Attached storage area

4) Master Bedroom (Ground Floor)

Approx. Area: ≈ 13–14 m²

• Queen-size bed layout
• Walk-in wardrobe
• Attached master suite bathroom

5) Master Suite Bathroom (Attached)

Approx. Area: ≈ 4–4.5 m²

• WC and wash basin
• Shower area
• Premium fittings

6) Common Bathroom

Approx. Area: ≈ 4 m²

• Western WC
• Wash basin
• Shower area

7) Storage Area

• Dedicated storage space
• Utility use

8) Floating Staircase

• Modern floating stair design
• Connects ground and upper floor
• Space-efficient layout

Upper Floor Layout (As per Plan)

1) Bedroom 2

Approx. Area: ≈ 11–12 m²

• Suitable for children or guests
• Double bed layout
• Good daylight and ventilation

2) Small Bedroom / Study

Approx. Area: ≈ 8–9 m²

• Ideal as study or guest bedroom
• Compact and efficient layout

3) Upper Floor Bathroom

Approx. Area: ≈ 4–4.5 m²

• WC and wash basin
• Shower area
• Ventilation window

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Structural reinforcement for stacking
• Anti-corrosion treatment

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid bathroom flooring

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Modern family residence
• Duplex-style container home
• Urban or suburban housing
• Rental or Airbnb unit
• Vacation home
