2 × 40 FT Container Home (Courtyard Style – Central Gap) — Full Description

Project Overview

This unique container home is designed using two 40-foot shipping containers positioned with a central open gap to form a courtyard-style layout. The configuration enhances spatial openness, ventilation, and natural light, creating a seamless indoor–outdoor living experience within a compact footprint.

• Number of containers: 2
• Container size: 40 FT each
• Total effective area: ≈ 75 m² (including central courtyard)
• Configuration: Courtyard style with gap in the middle
• Use: Ideal for family living, eco-homes, and premium vacation houses

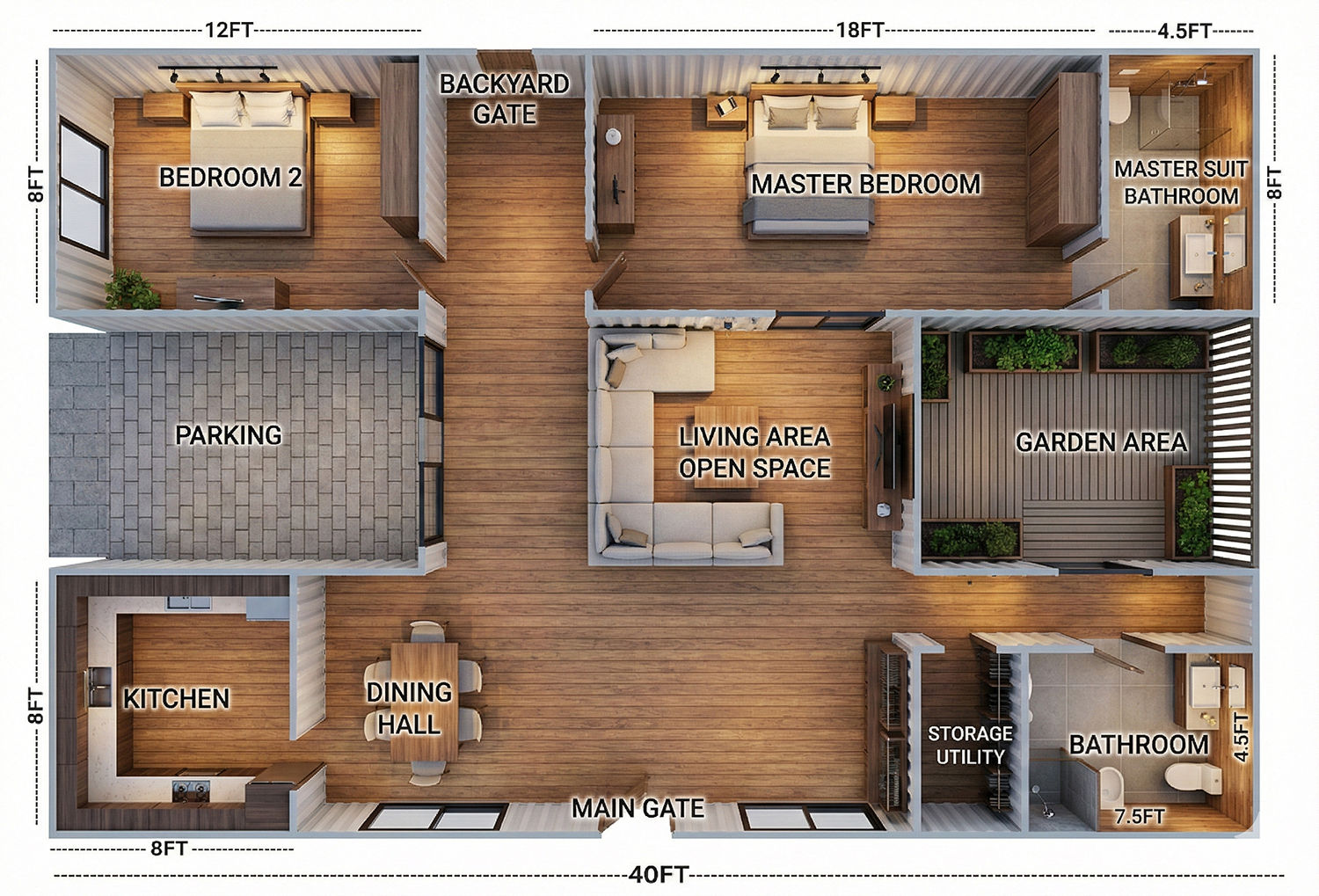

The layout is organized around a large open living space, with bedrooms placed on opposite sides to ensure privacy while maintaining visual connectivity through the central courtyard.

Overall Planning Concept

Internal Space Planning (As per Layout)

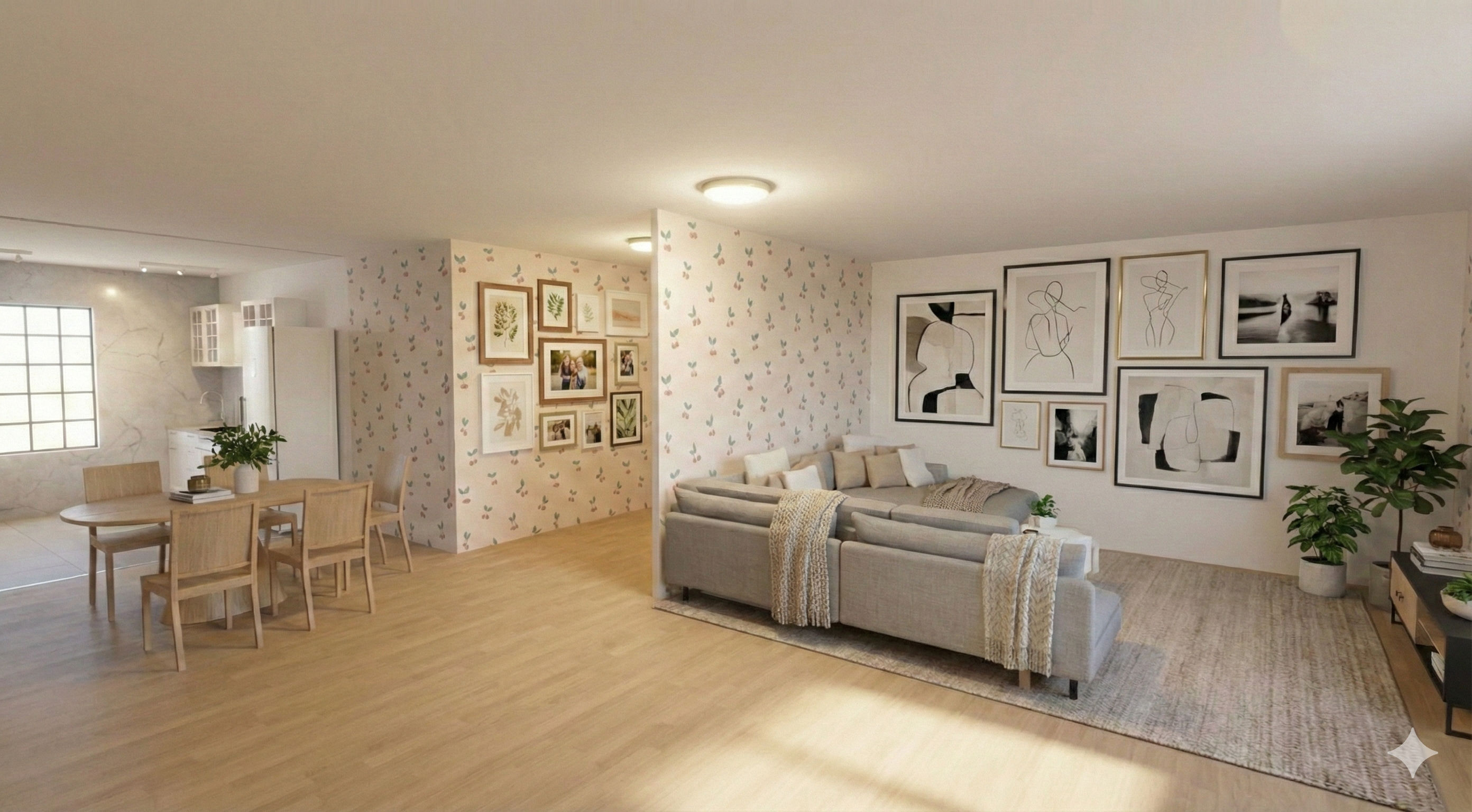

1) Open Living Area (Central Zone)

Approx. Area: ≈ 18–20 m²

The living area is centrally positioned and visually connected to the courtyard and garden spaces.

• Large sofa seating arrangement
• Main entrance access
• Strong cross-ventilation
• Excellent natural daylight

2) Dining Hall

Approx. Area: ≈ 8–9 m²

• 4–6 seater dining table
• Located near kitchen and courtyard
• Comfortable family dining space

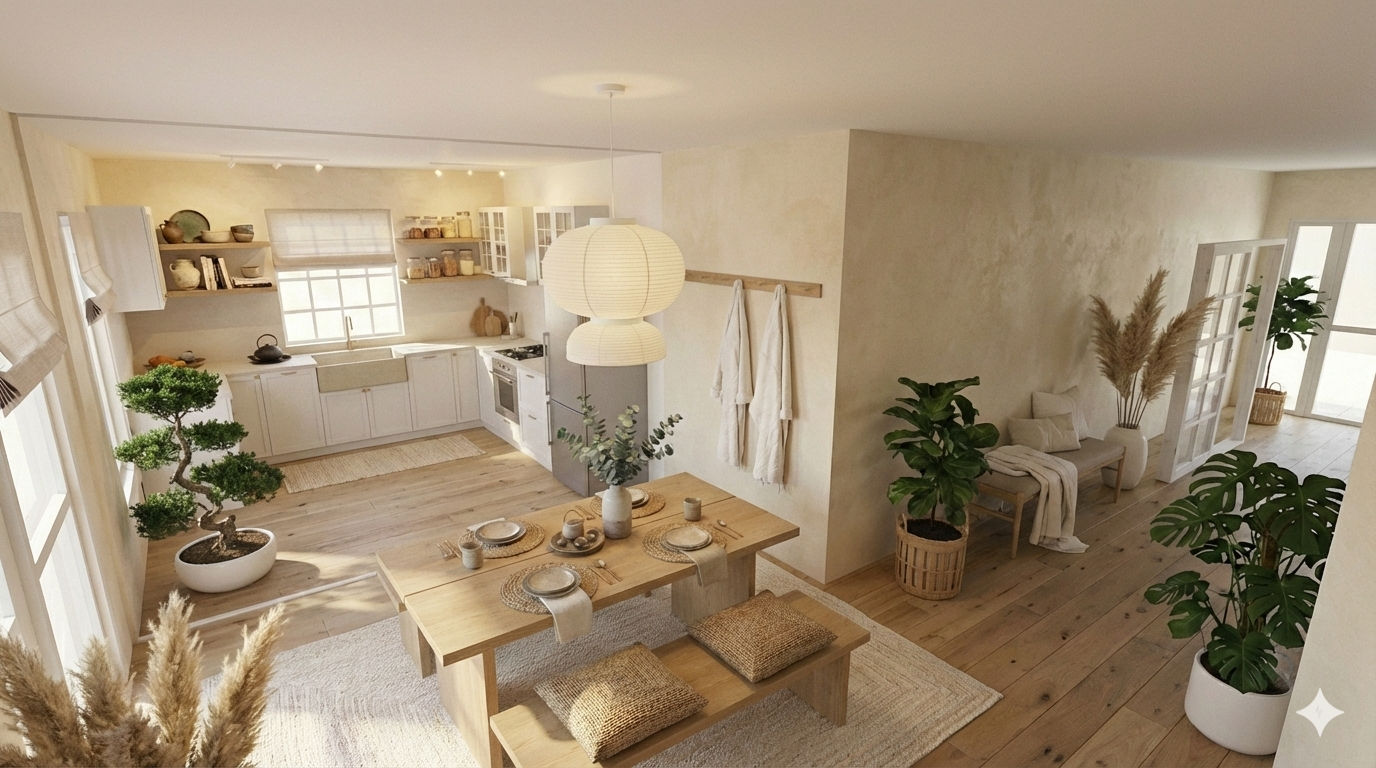

3) Kitchen

Approx. Area: ≈ 7–8 m²

A functional U-shaped modular kitchen with efficient workflow.

• Granite / quartz countertop
• Hob, chimney, and sink provision
• Overhead and base cabinets
• Easy access to dining area

4) Master Bedroom

Approx. Area: ≈ 12–13 m²

• Queen-size bed layout
• Wardrobe provision
• Attached master suite bathroom

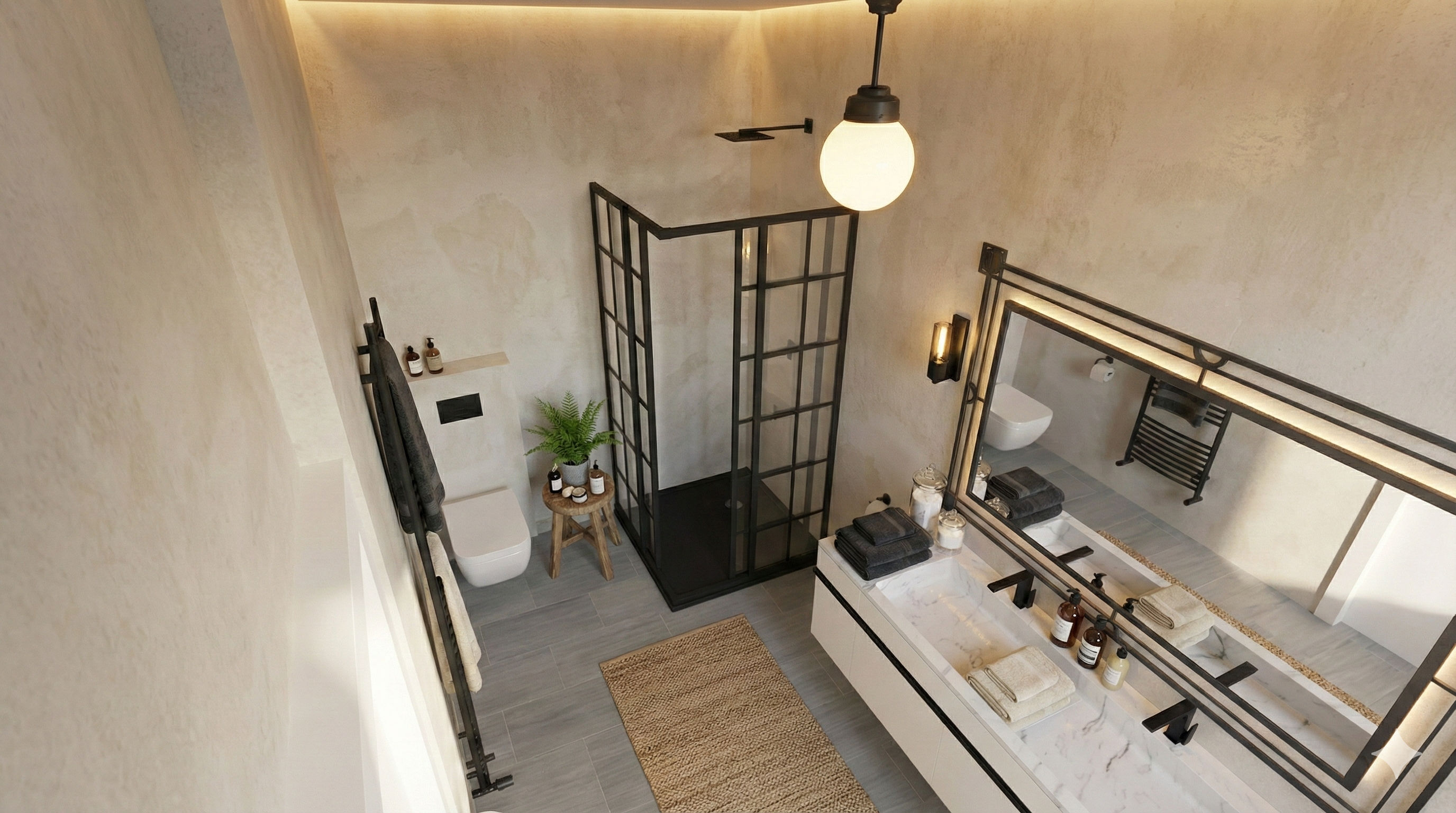

5) Master Suite Bathroom (Attached)

Approx. Area: ≈ 4–4.5 m²

• WC and wash basin
• Shower area
• Premium fittings
• Ventilation window

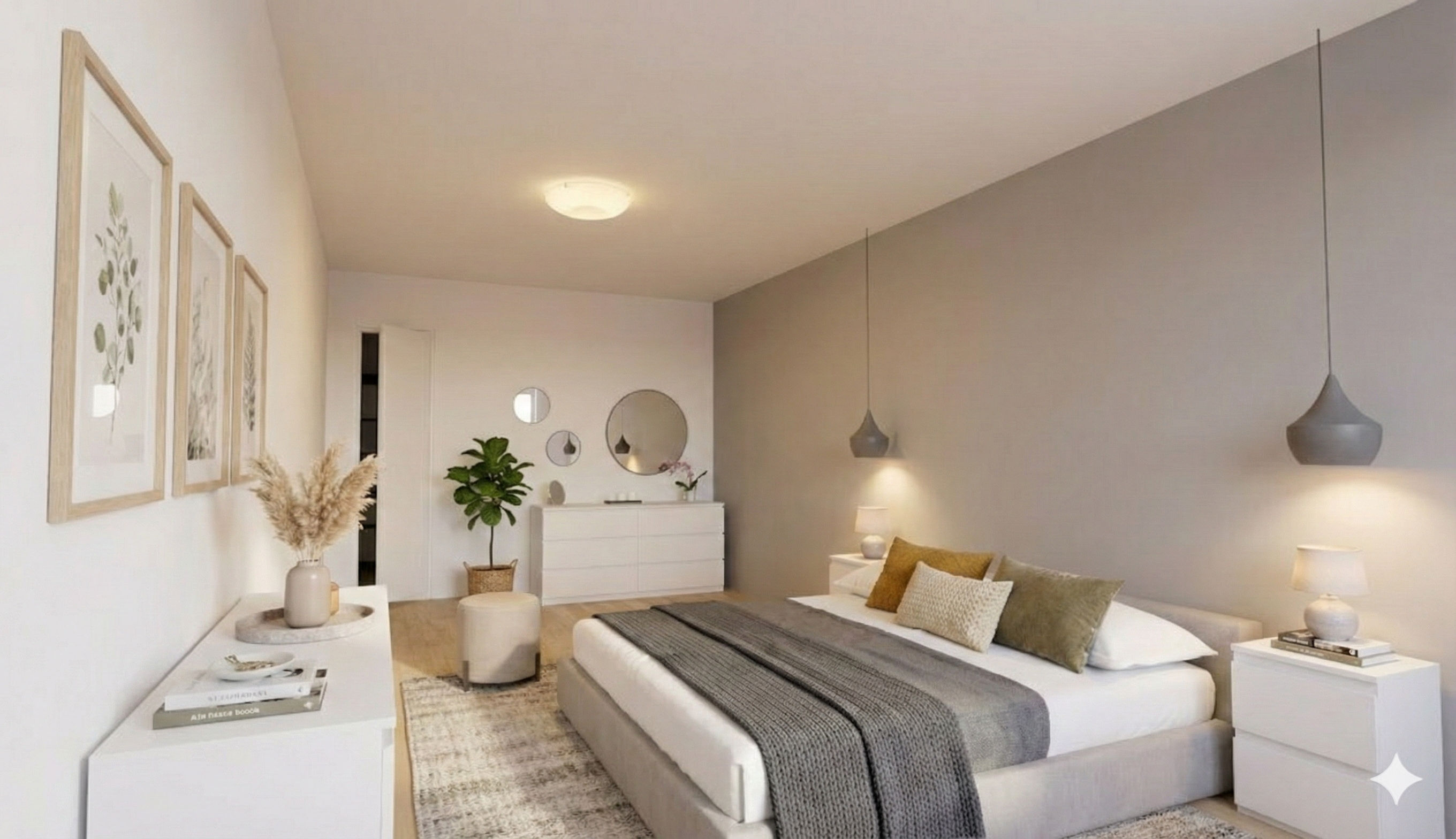

6) Bedroom 2

Approx. Area: ≈ 11–12 m²

• Ideal for children or guests
• Double bed layout
• Natural light and ventilation

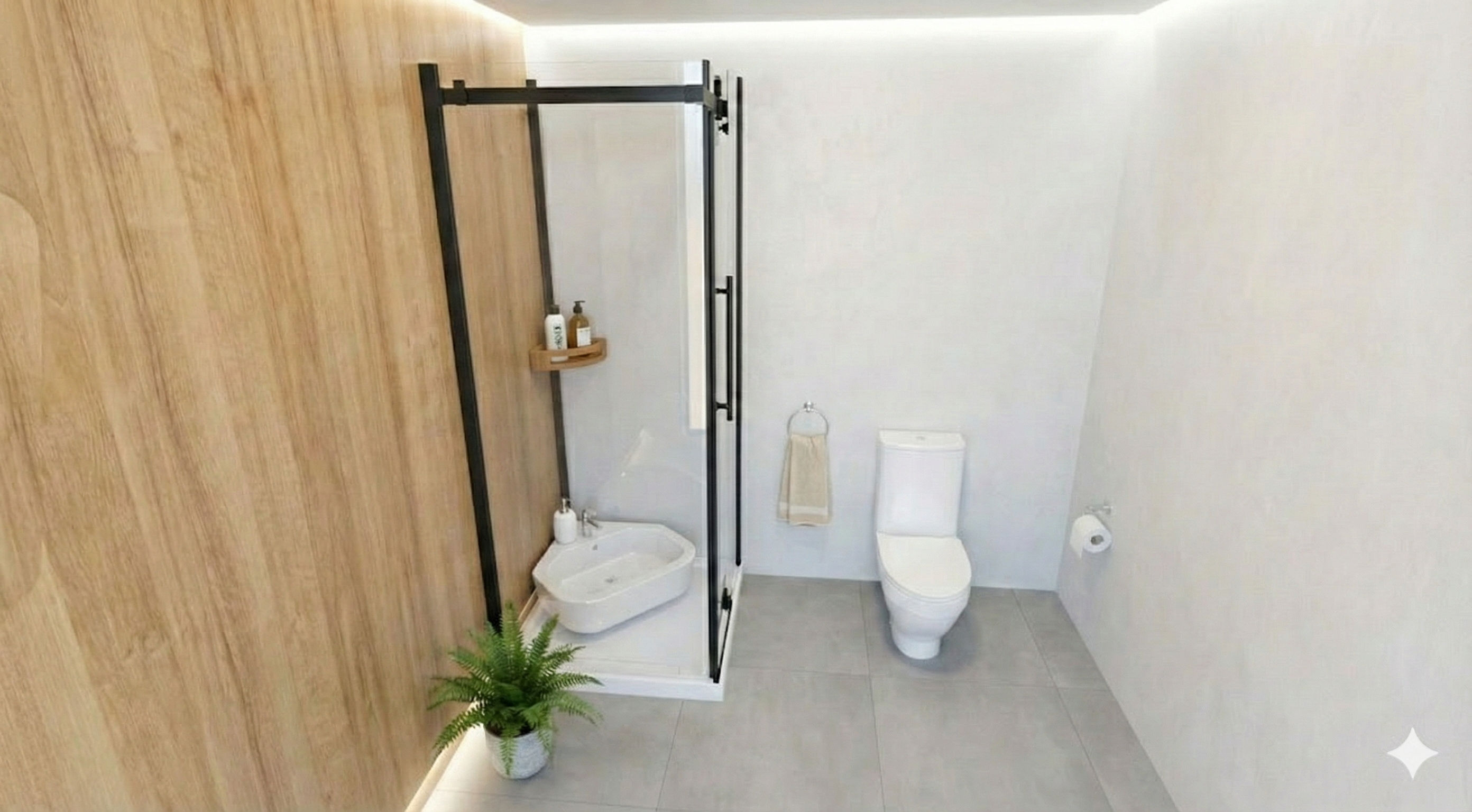

7) Common Bathroom

Approx. Area: ≈ 4–4.5 m²

• Western WC
• Wash basin
• Shower area
• Anti-skid flooring

8) Storage / Utility Area

• Dedicated storage space
• Utility and maintenance use

9) Courtyard & Garden Areas

• Central open-to-sky courtyard
• Private garden sit-out
• Enhances ventilation and daylight
• Creates a resort-style living feel

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Anti-corrosion and rust-proof coating
• Reinforced structural cut-outs

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Wooden laminate / vinyl / ceramic tiles
• Anti-skid flooring in bathrooms

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Modern family residence
• Eco-friendly courtyard home
• Luxury farmhouse
• Premium vacation or weekend home
• Resort-style container villa
