2 × 40 FT Container Home (Stacked – G+1) — Full Description

Project Overview

This container home is developed using two 40-foot shipping containers stacked vertically to form a compact yet efficient double-storey (G+1) residence. Each 40 FT container provides approximately 30 m² of usable space, resulting in a well-zoned home with clear separation between public and private areas.

• Number of containers: 2
• Container size: 40 FT each
• Total built-up area: ≈ 60 m² (≈ 645 sq.ft.)
• Configuration: Stacked (Ground Floor + Upper Floor)
• Use: Ideal for small families, couples, or premium rental homes

The design emphasizes vertical efficiency, privacy, natural light, and modern living within a compact footprint.

Overall Dimensions (Per Container)

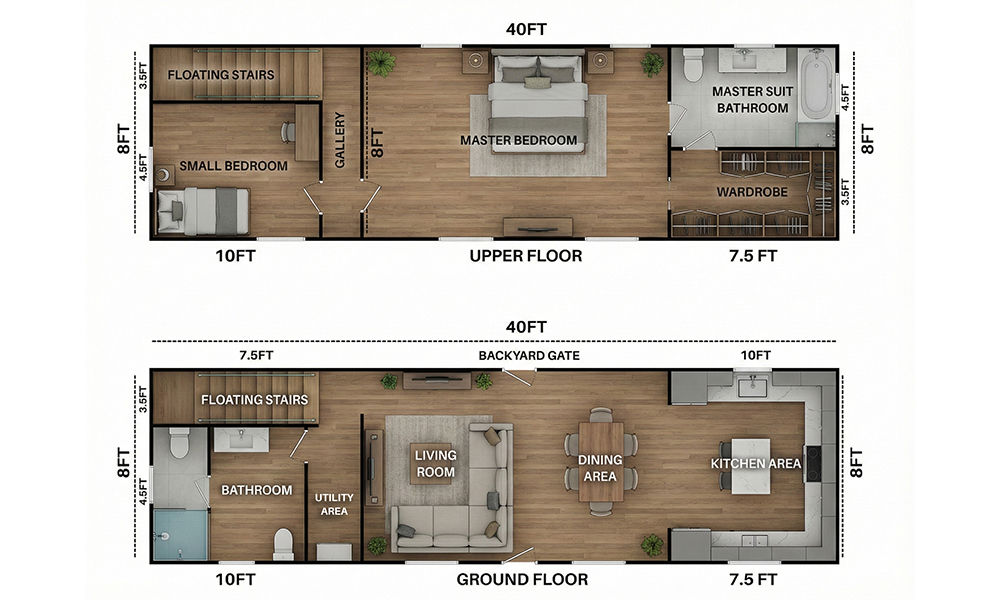

Ground Floor Layout (As per Plan)

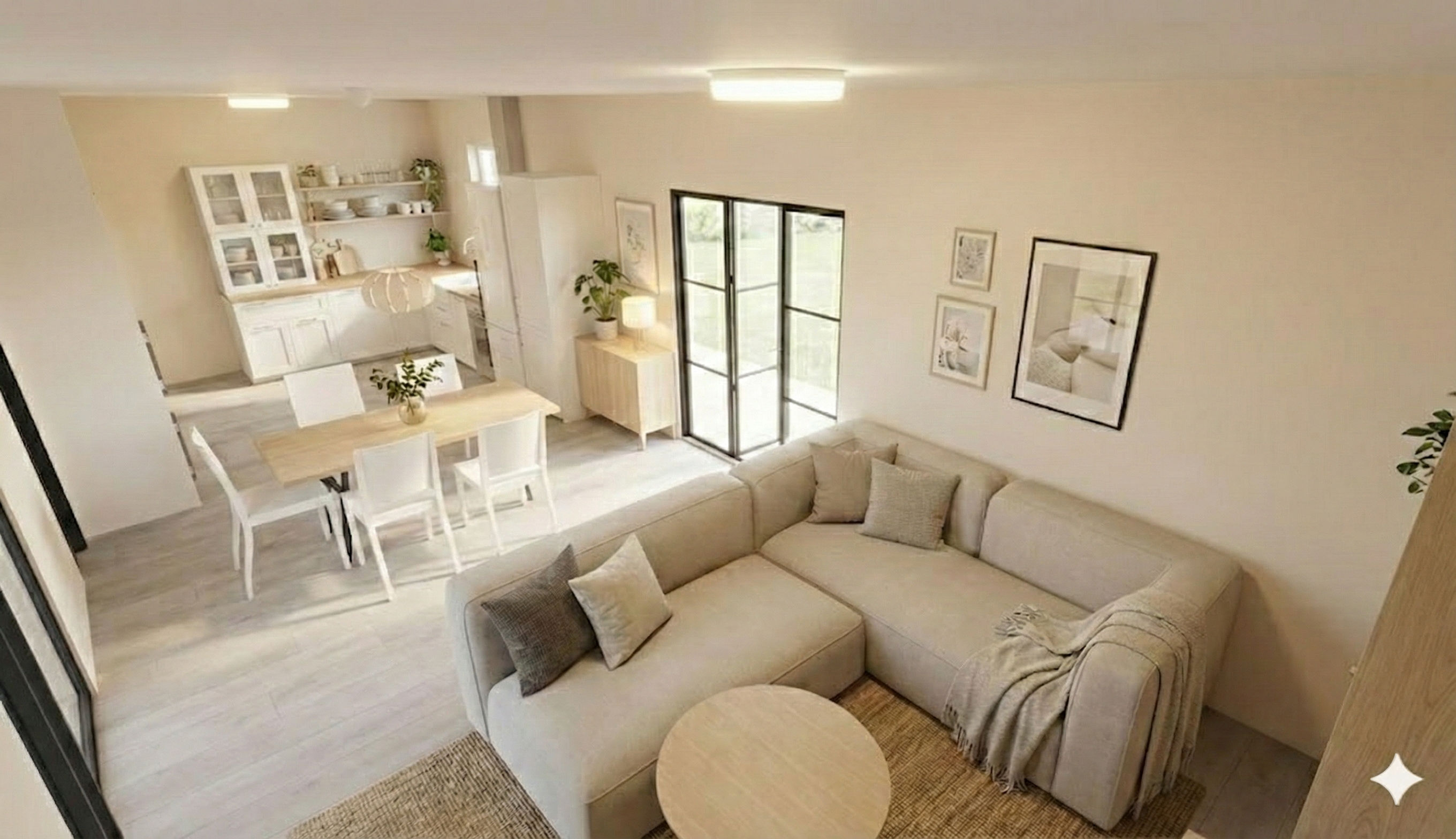

1) Living Room

Approx. Area: ≈ 12–13 m²

The living room is centrally positioned and acts as the main gathering space on the ground floor.

• Sofa seating arrangement with TV unit
• Open layout for visual spaciousness
• Large openings for daylight
• Direct connection to dining area

2) Dining Area

Approx. Area: ≈ 6–7 m²

Positioned between the living room and kitchen, the dining area comfortably accommodates a 4-seater table.

• Efficient circulation space
• Natural lighting
• Ideal for daily family meals

3) Kitchen Area

Approx. Area: ≈ 7–8 m²

A functional U-shaped modular kitchen designed for compact efficiency and storage optimization.

• Granite/quartz countertop
• Sink and hob provision
• Overhead and base cabinets
• Refrigerator space
• Ventilation window

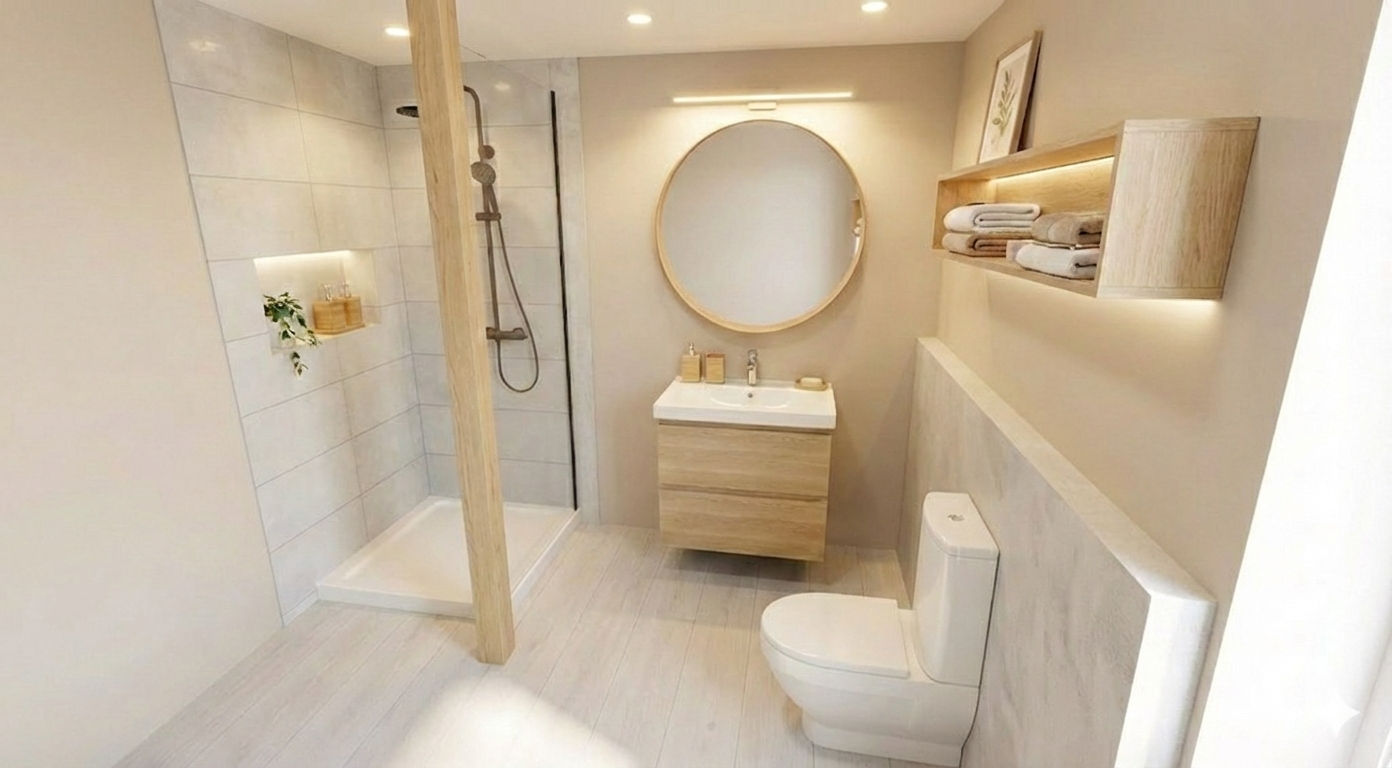

4) Common Bathroom

Approx. Area: ≈ 3–3.5 m²

• Western WC
• Wash basin
• Shower area
• Exhaust ventilation
• Anti-skid flooring

5) Utility Area

• Washing machine provision
• Storage for cleaning utilities
• Compact and functional layout

6) Floating Staircase

• Modern floating stair design
• Connects ground and upper floor efficiently
• Space-saving configuration

Upper Floor Layout (As per Plan)

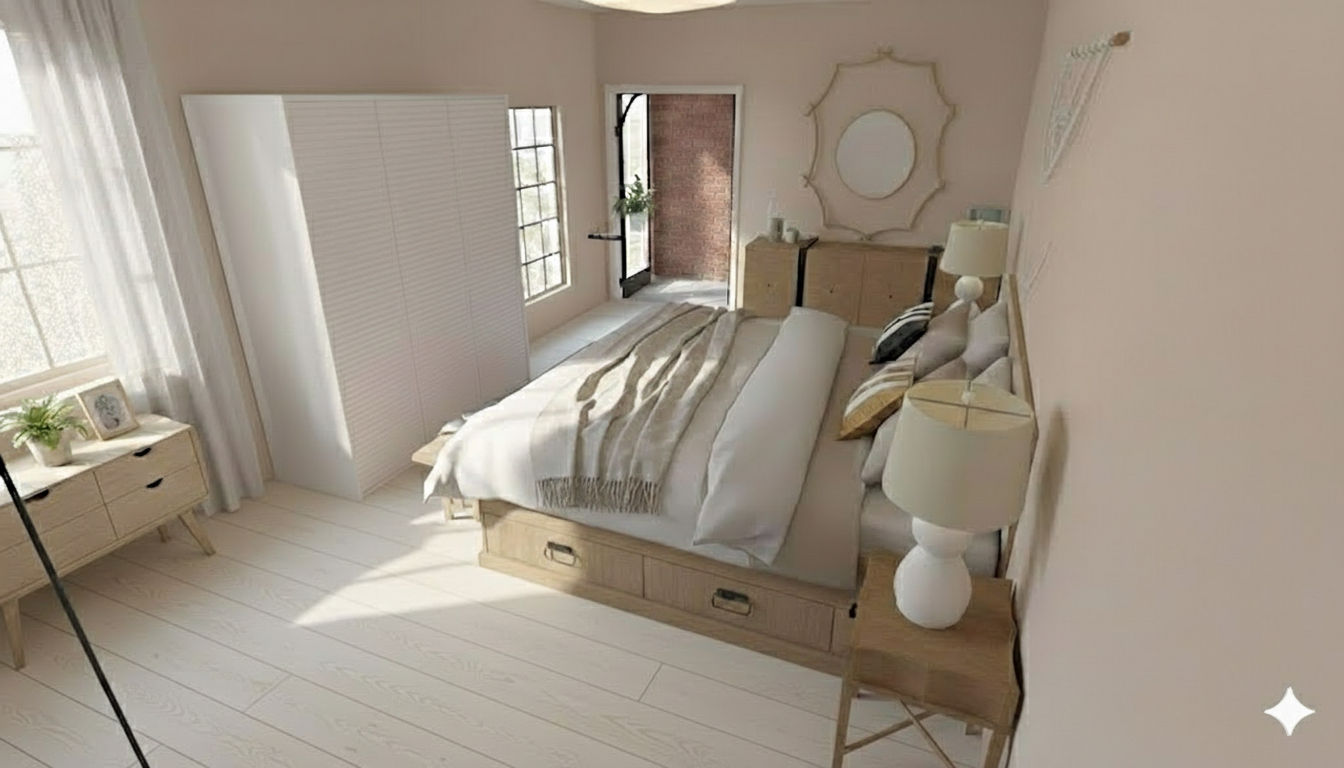

1) Master Bedroom

Approx. Area: ≈ 12–14 m²

The master bedroom is spacious and centrally positioned on the upper floor, ensuring privacy and comfort.

• Queen-size bed layout
• Side tables
• Good daylight and ventilation

2) Walk-in Wardrobe

• Dedicated wardrobe space
• Organized storage for clothing and accessories

3) Master Suite Bathroom (Attached)

Approx. Area: ≈ 3–3.5 m²

• Attached bathroom
• WC and wash basin
• Bathtub or shower cubicle
• Premium fittings
• Ventilation window

4) Small Bedroom / Study Room

Approx. Area: ≈ 6–7 m²

• Suitable for guest bedroom or home office
• Single or double bed layout
• Natural light access

5) Gallery / Passage Area

• Connects all upper-floor spaces
• Maintains smooth circulation

Construction & Material Details

Container Structure

• Corten steel shipping containers
• Anti-rust and anti-corrosion treatment
• Structural reinforcement for stacking

Insulation

• Spray-on closed cell foam insulation applied directly to the internal side of the container walls and ceiling (to prevent condensation issues inherent in container homes)
• Acoustic insulation between floors
• False ceiling with layered LED lighting
• Luxury flooring
• Premium wall finishes

Flooring

• Vinyl / wooden laminate / ceramic tiles
• Anti-skid bathroom flooring

Utilities & Services

Electrical

• Concealed wiring
• LED lighting
• AC and geyser points
• Solar-ready provision

Plumbing

• Concealed plumbing
• Hot and cold water provision
• CP fittings

Ideal Use Cases

• Permanent residential home
• Urban compact housing
• Airbnb or serviced rental unit
• Farmhouse or weekend home
• Resort or hospitality villa module
